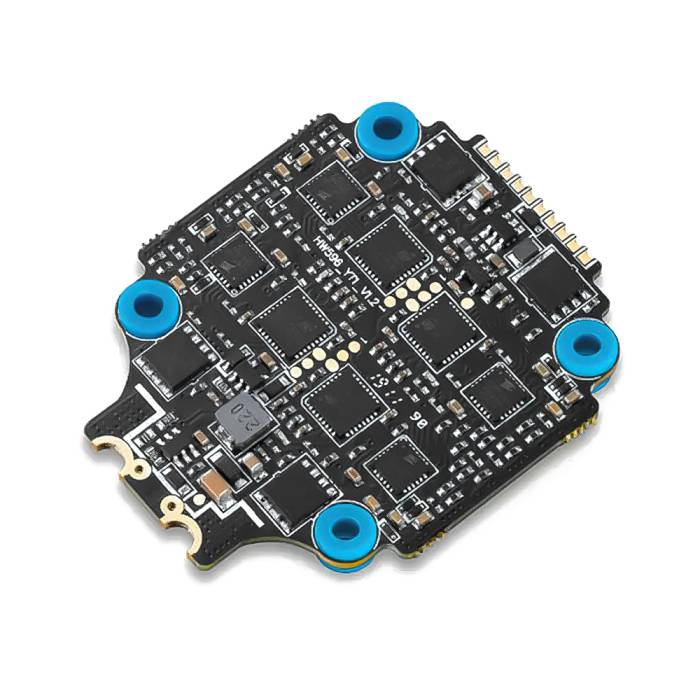

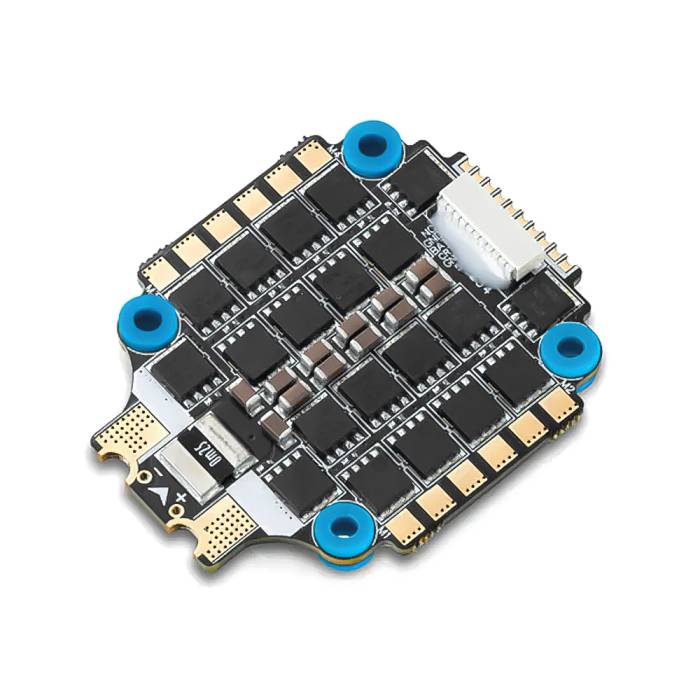

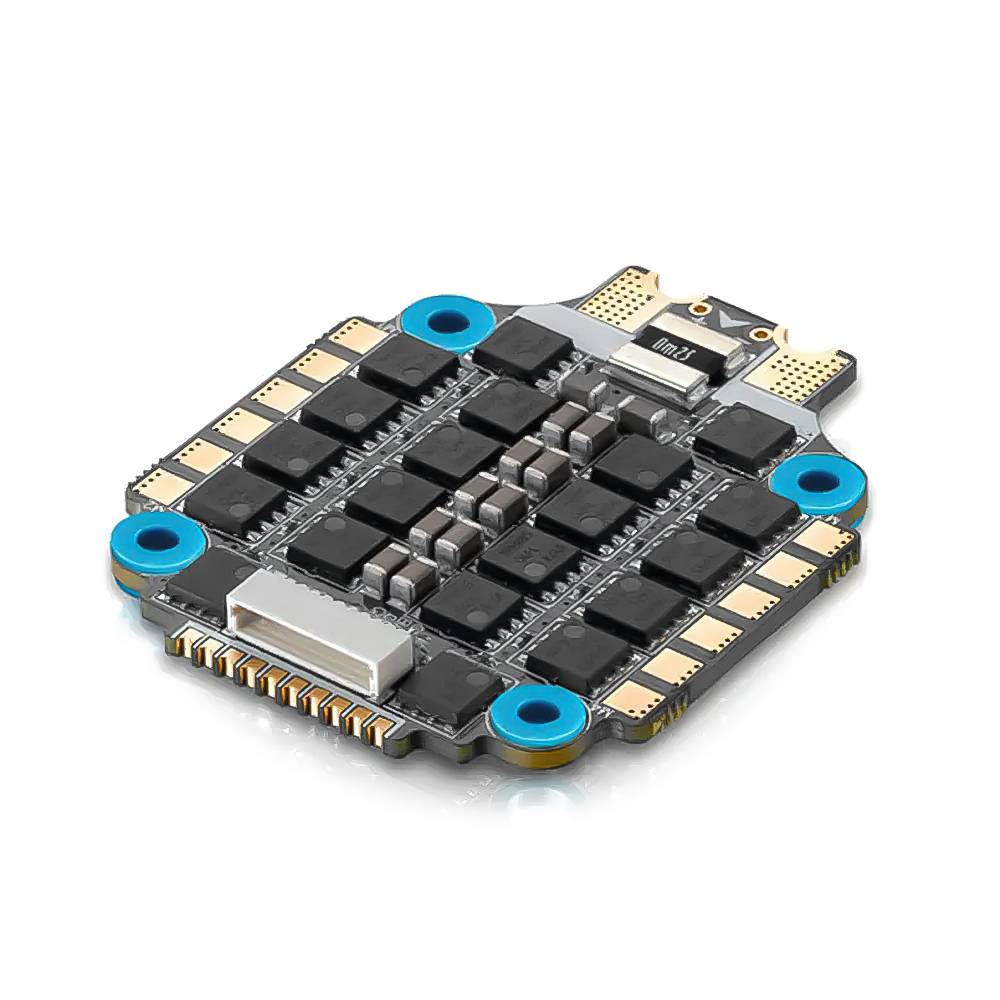

Hobbywing XRotor G2 Micro 65A 6S AM32 4-in-1 ESC - 30x30

The HOBBYWING XRotor FPV G2 65A 4-in-1 ESC is a high-performance power system for FPV racing drones, now upgraded with open-source AM32 firmware for faster updates, expanded features, and enhanced stability over BLHeli-32. Designed to handle high-load conditions with ease, it uses a 32-bit ARM F4 MCU at 120 MHz, supports variable PWM refresh rates from 48–96 kHz, and delivers smooth, precise throttle control.

• AM32 open-source firmware for faster updates and feature expansion
• 32-bit ARM F4 MCU running at 120 MHz for ultra-fast processing
• Variable PWM refresh rate (48–96 kHz) with dynamic adjustment
• Built-in voltmeter for real-time amp and voltage monitoring
• Adjustable motor KV settings for precise throttle control
• Integrated 4 high-performance ESCs in one compact unit
• Shock-absorbing mounting holes reduce vibration impact
• Higher sustained power output for demanding flights
• Supports DShot 300/600 and traditional PWM signals

• Telemetry: Voltage & current monitoring via built-in voltmeter
• Mounting Holes: 30.5×30.5mm, M3 with shock-absorbing design
• PWM Frequency: 48–96 kHz (auto-adjusting)
• Burst Current: 80A (per channel, 10s)
• Continuous Current: 65A
• Firmware: AM32 (open-source)
• MCU: 32-bit ARM Cortex-M4 @ 120 MHz
• Voltage Input: 3–6S LiPo
• Throttle Signal: DShot 300/600, PWM
• Weight: ~15g (without wires)
• BEC Output: None

• 1x Hobbywing XRotor Micro 65A 6S AM32 4-in-1 ESC - 30x30
