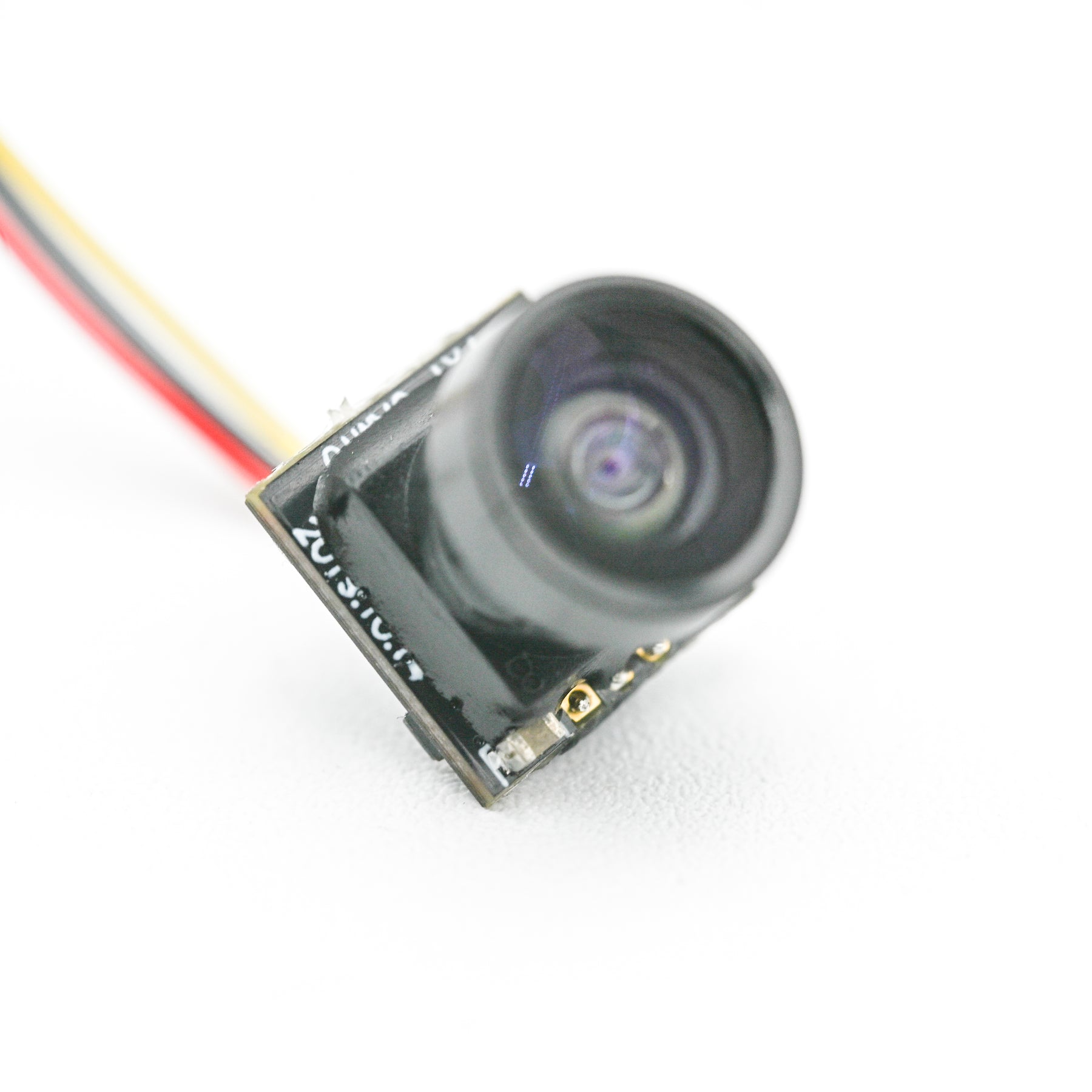

You already know this camera. It's the ultralight 600TVL micro cam that's become the standard for whoop racing and freestyle — same razor-sharp image, same fast analog video pipeline, same 115° field of view that gives you peripheral awareness without the fishbowl. We didn't reinvent the optics. We fixed everything around them that fails when you crash.

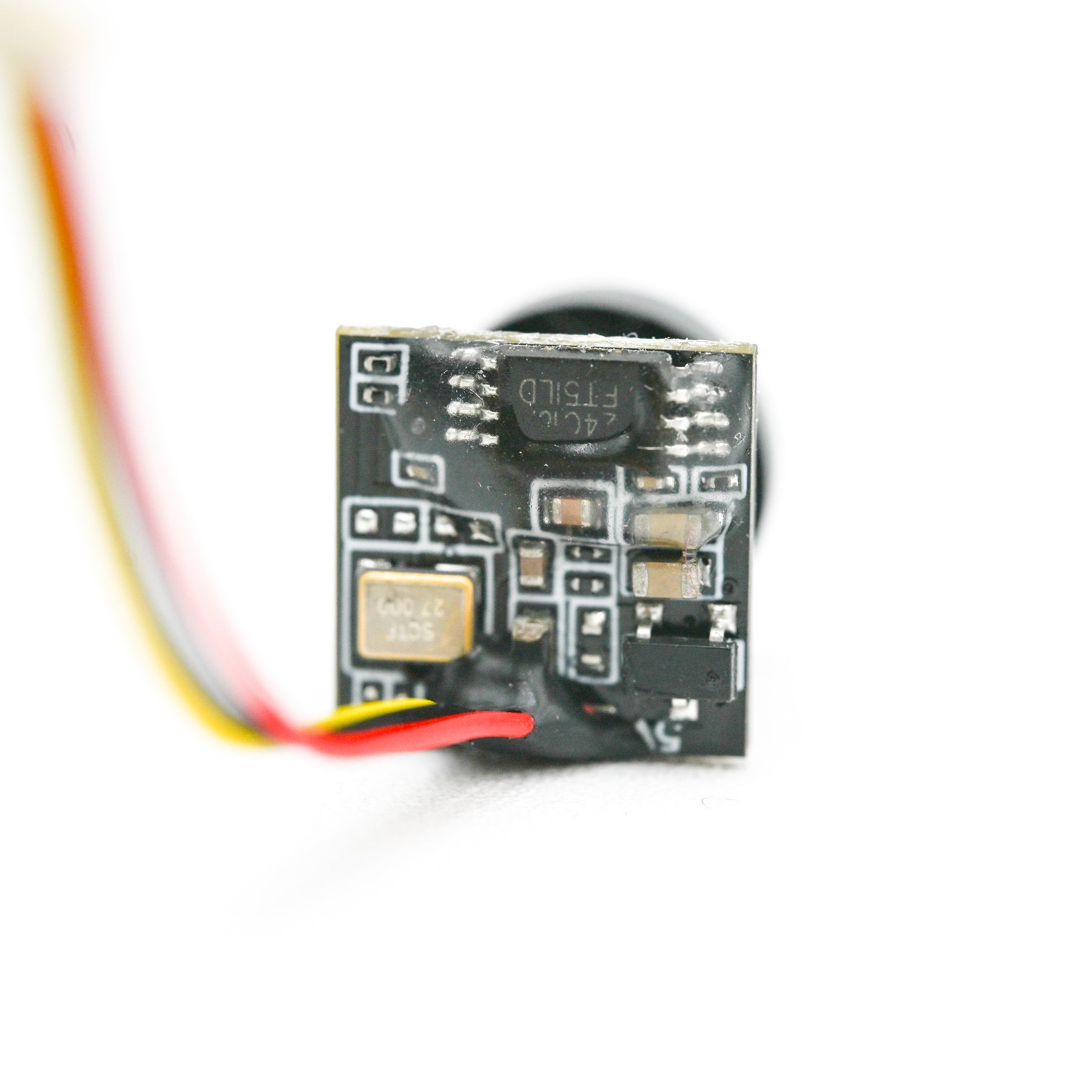

Epoxy-Staked Configuration Chip
This camera platform has one known weak point: the small EEPROM chip that stores the camera's image settings. Hard crashes can fatigue its tiny solder joints, and when a joint cracks, pilots see washed-out colors, a corrupted image, or a camera that stops outputting video entirely — often with no visible damage.
Every camera we ship has this chip epoxy-staked directly to the PCB, the same reinforcement technique used in aerospace electronics. Crash energy transfers through the rigid epoxy bond instead of the fragile solder joints, so the most common crash failure on this camera is addressed before it ever reaches your bench.
Bottom-Exit Wiring — Shorter Runs, Less Strain, Less Weight
We rotated the camera orientation so the wires exit from the bottom of the board instead of the side. It sounds small. It isn't:
-
Shorter wire runs. The wires point straight out above your flight controller, so you can build with less wire — saving real weight on a craft where every hundredth of a gram matters.
-
Less strain on delicate wires. Top-exit wiring gets bent, snagged, and torqued during handling, canopy installs, and crashes. Bottom-exit routing keeps the wires tucked in line with the frame, dramatically reducing the flex-cycling that kills micro camera harnesses.
-
Cleaner builds. No wire loop bulging out the top of your canopy.

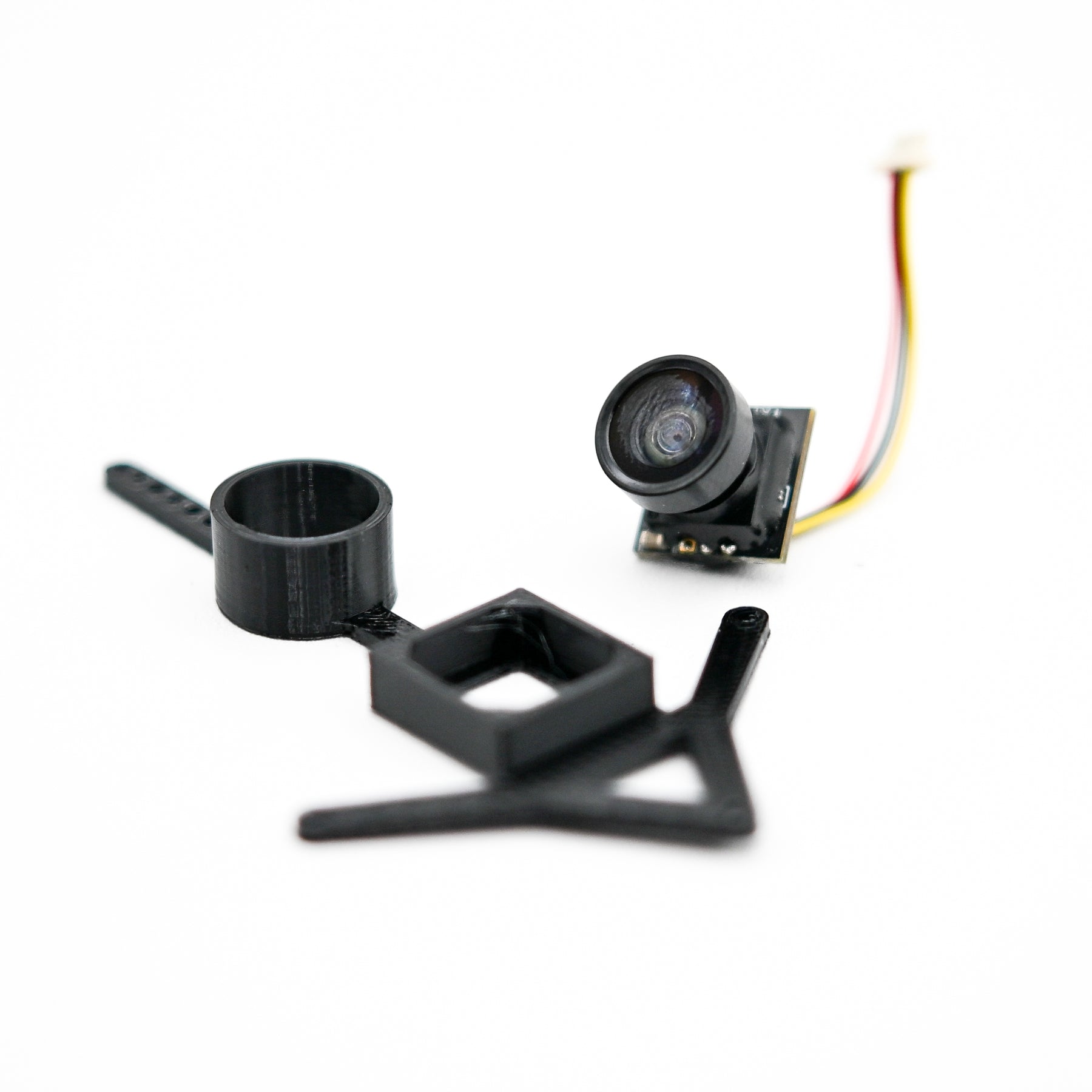

Free TPU Camera Mount — In Every Box
We include a TPU camera mount with every single unit. No hunting for a compatible mount, no extra purchase, no waiting on a second shipment. Open the box, mount the cam, go fly.
Specifications
| Spec |
Detail |
| Resolution |
600TVL analog |
| Lens / FOV |
115° wide-angle |
| Board size |
11mm × 11mm single-PCB design |
| Input voltage |
3.5V–5V |
| Weight (with wires & plug) |
~1.4g |
| Weight (board only) |
~1.25g |
| Wire exit |
Bottom-exit (weight-saving, strain-relieved routing) |
| Reinforcement |
Factory epoxy-staked EEPROM + impact-zone reinforcement |
| Connector |
Plug compatible with 2024/25 BetaFPV AIO 4in1 and 5in1 flight controllers |
| Included |
Camera + FREE TPU camera mount |

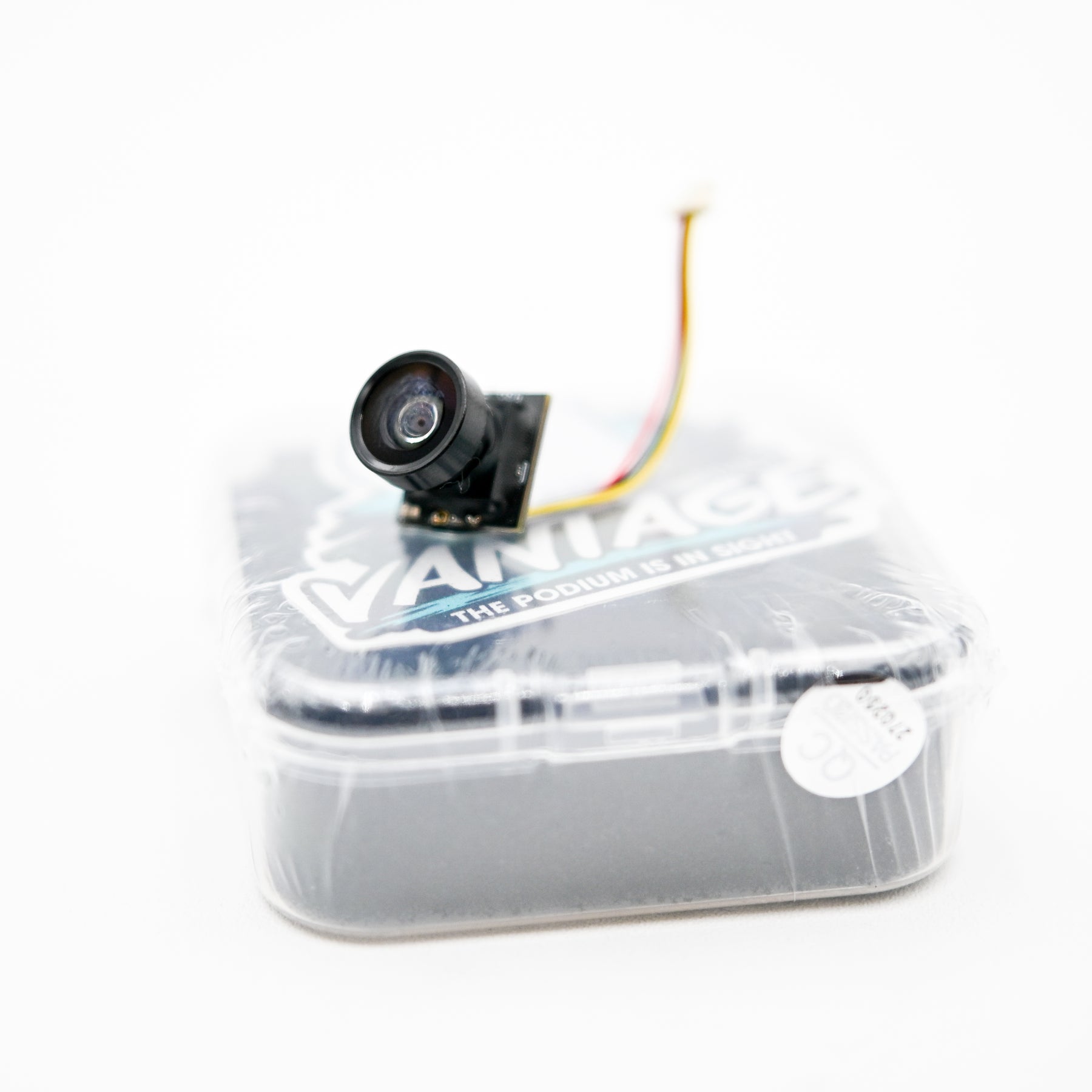

What's In The Box
- 1× Vantage FPV Camera (epoxy-staked, bottom-exit wiring)
- 1× TPU Camera Mount — FREE
Same camera you trust. Built to take the hits.
