Divimath Race VTX

Medium Range Racing-Drone Video Transmitter

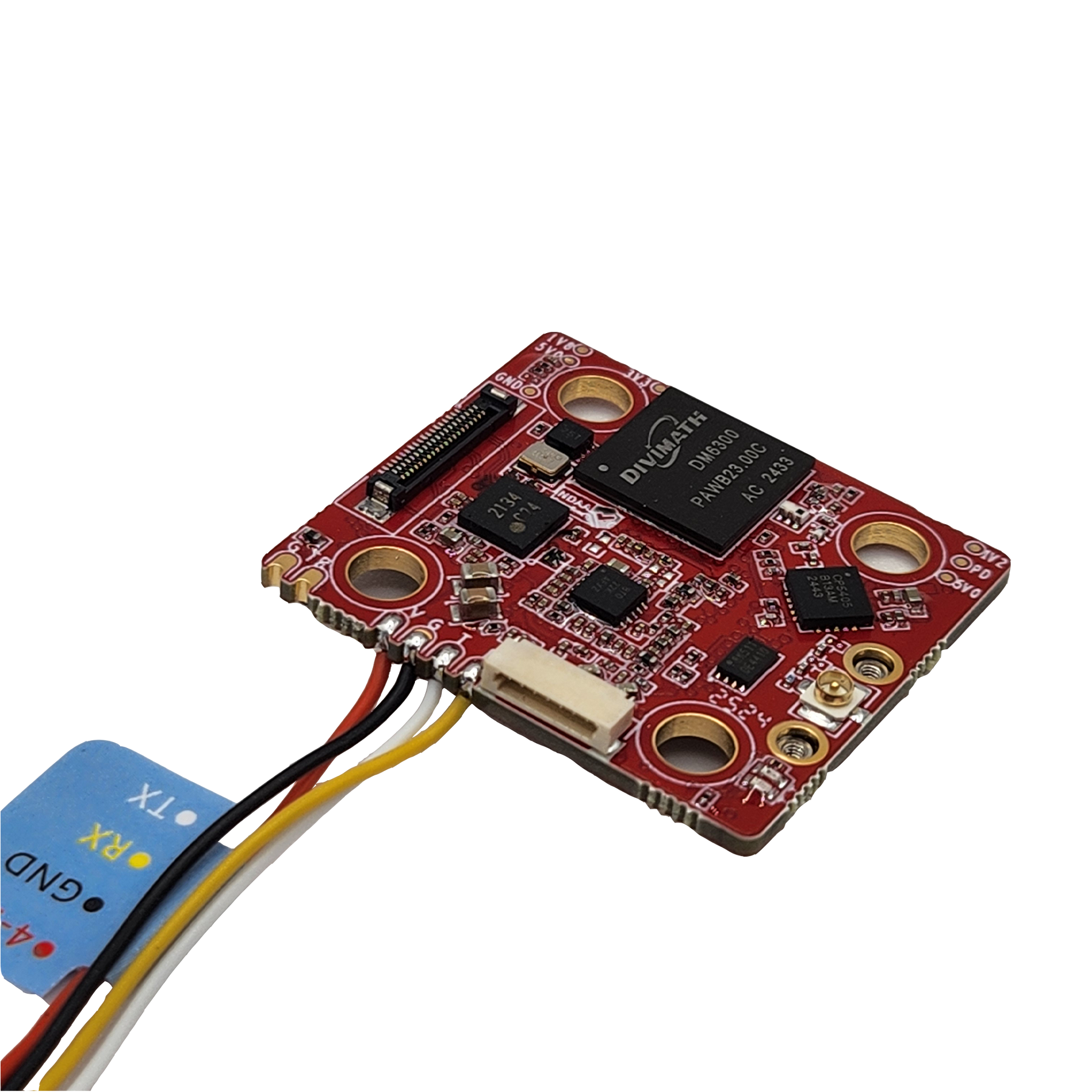

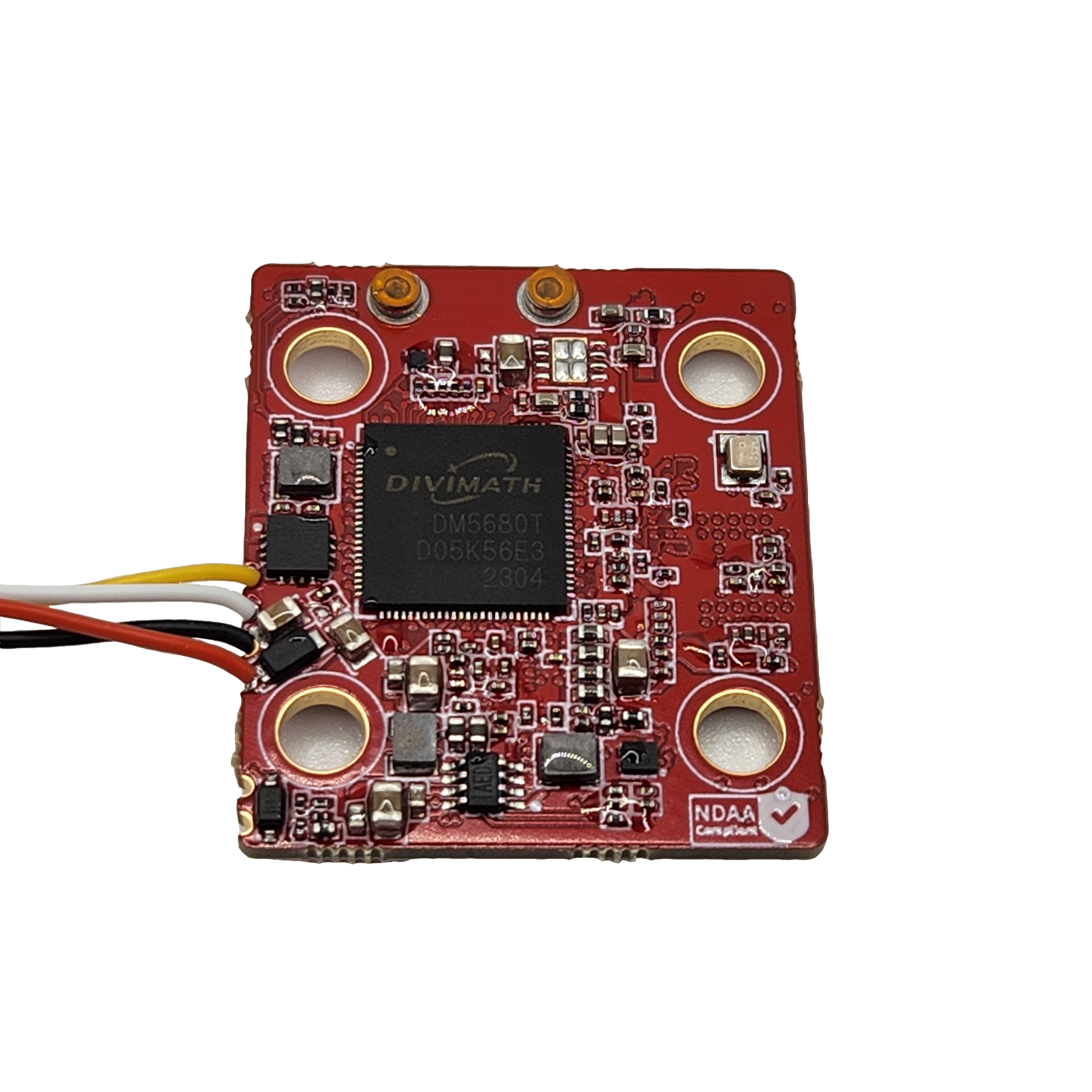

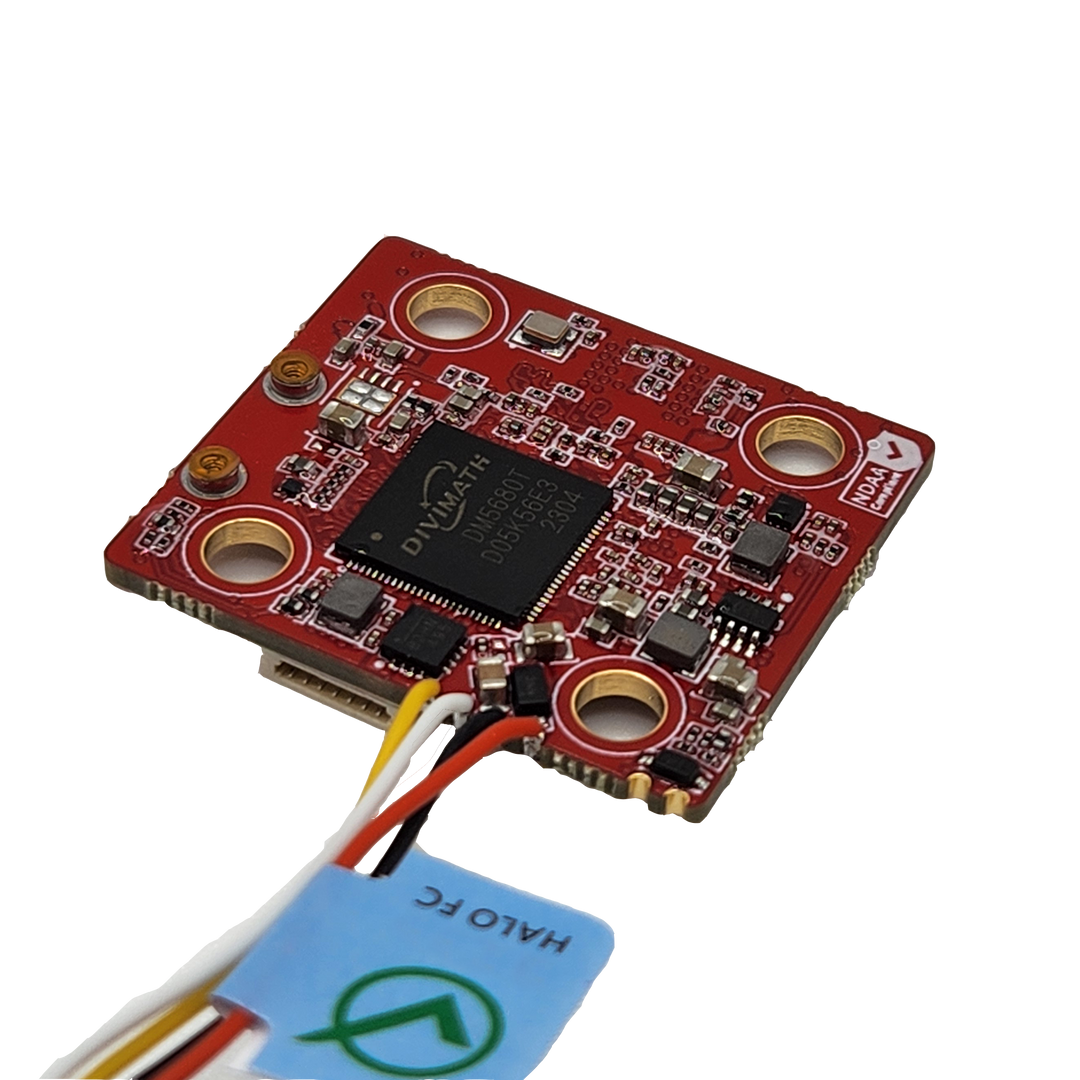

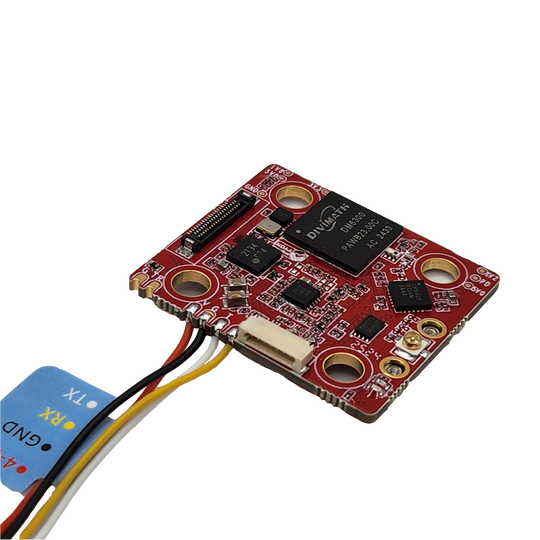

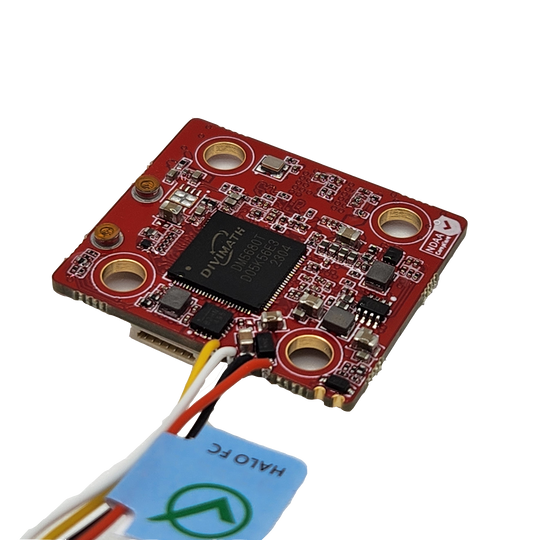

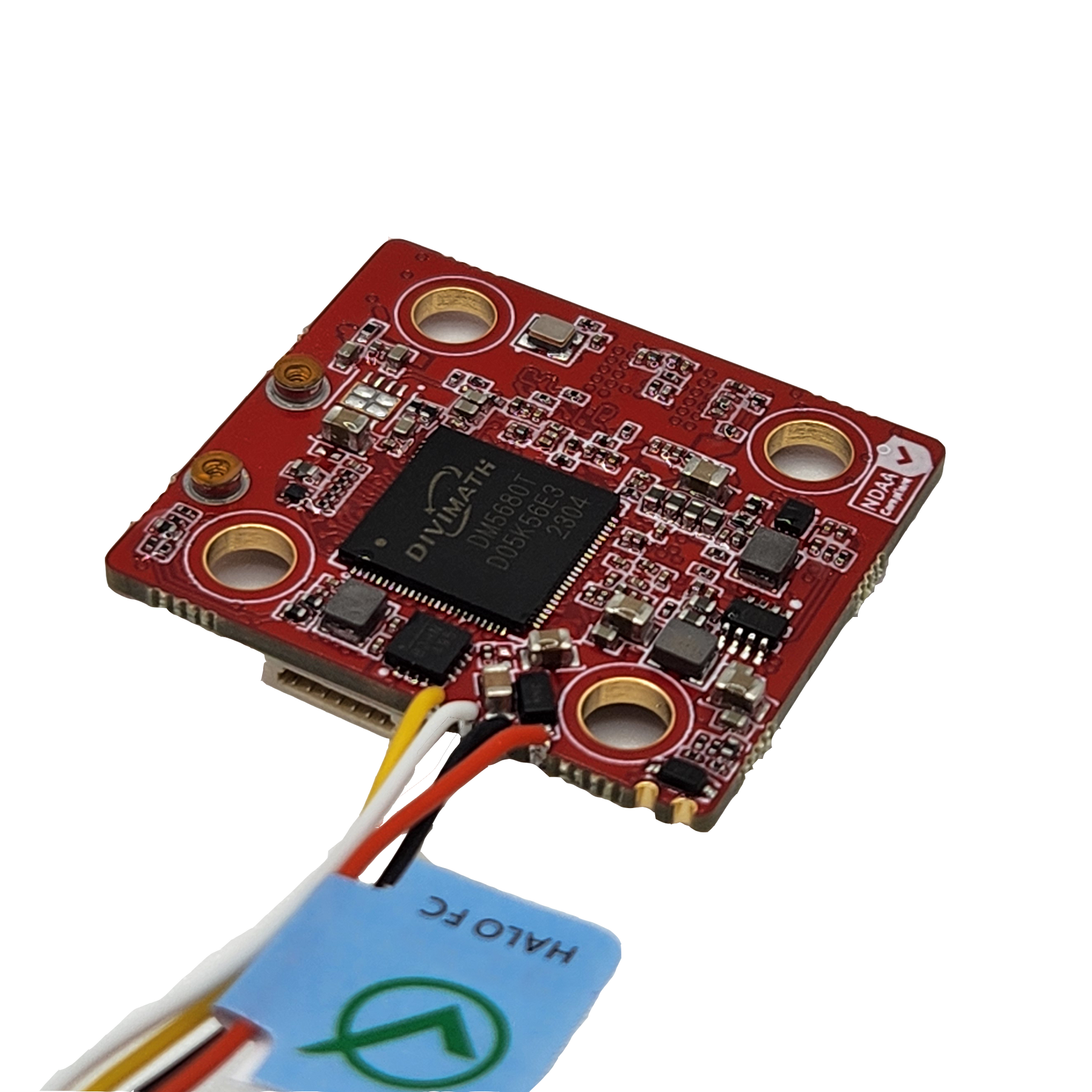

The Divimath Race VTX is a compact, durable 5.8GHz digital video transmitter purpose-built for FPV racing. Designed for reliability and ease of use, it features a rugged 1.6mm PCB, secure antenna retention, reverse polarity protection, and solder-free installation via included harness.

With a wide voltage input range (4V–12V), Race VTX can be powered directly from most flight controllers. Its narrow 28mm width aligns with standard FCs for tighter builds and improved impact resistance.

Key Features:

• Supports 540p90, 720p60, and 1080p30 video modes
• 25mW / 200mW switchable RF power
•  Video encryption support (exclusive to Divimath NDAA products)
• Robust construction with glue-reinforced components and reverse polarity protection
• Secure U.FL antenna connection with metal retention bar
• No soldering required – plug-and-play harness for HD-ready FCs

Includes:

• Divimath Race VTX with pre-soldered harness
• 4× Rubber Grommets (M4 to M3)
• 4× u.FL Antenna Retention Screws
• 1× Antenna Retention Bar

Compact and crash-tolerant, the Divimath Race VTX offers high-performance digital video with NDAA-compliant sourcing for competitive racing and secure applications.

Country of Origin: Thailand
