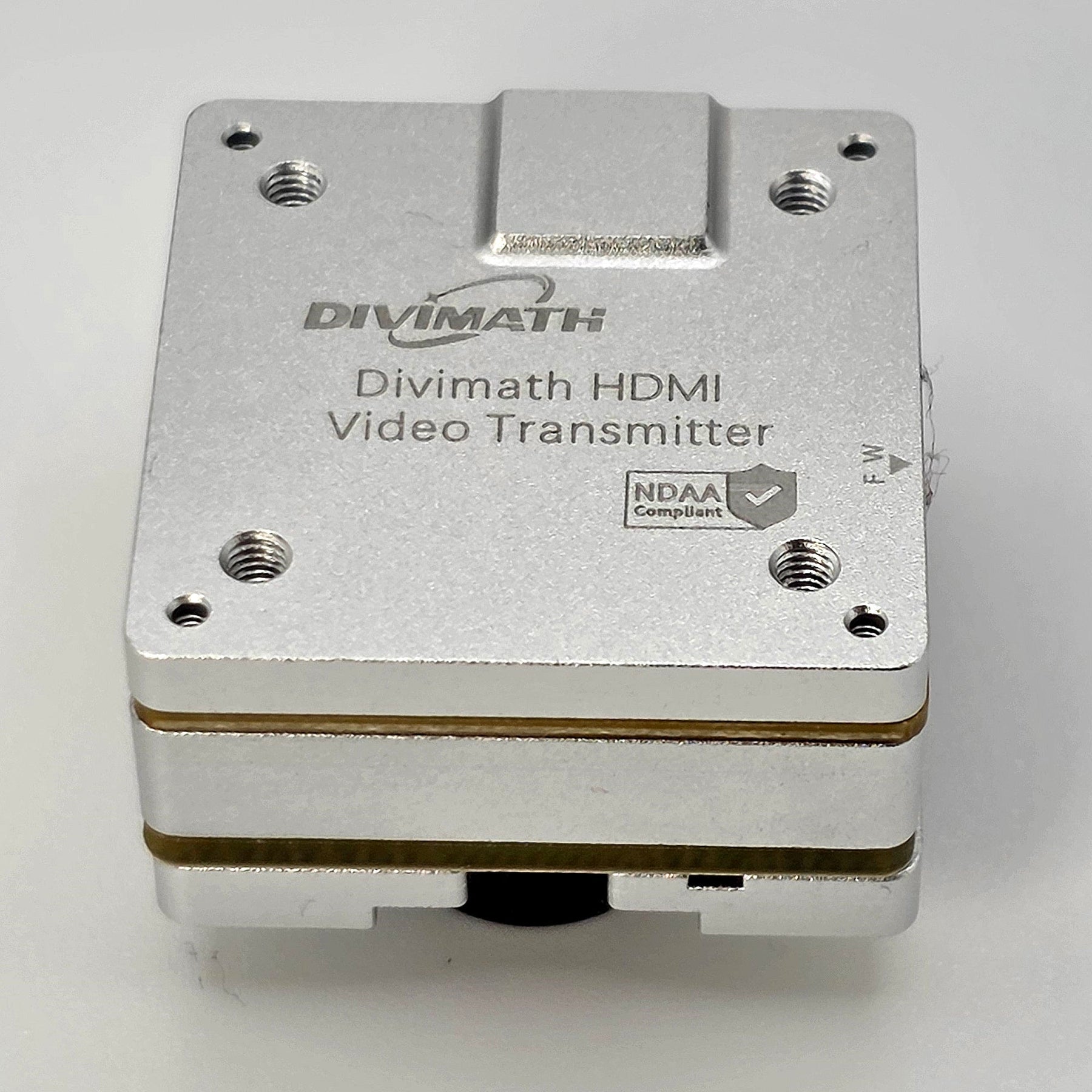

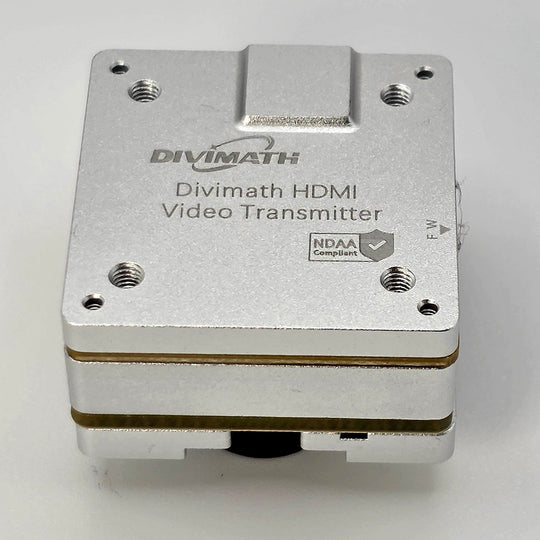

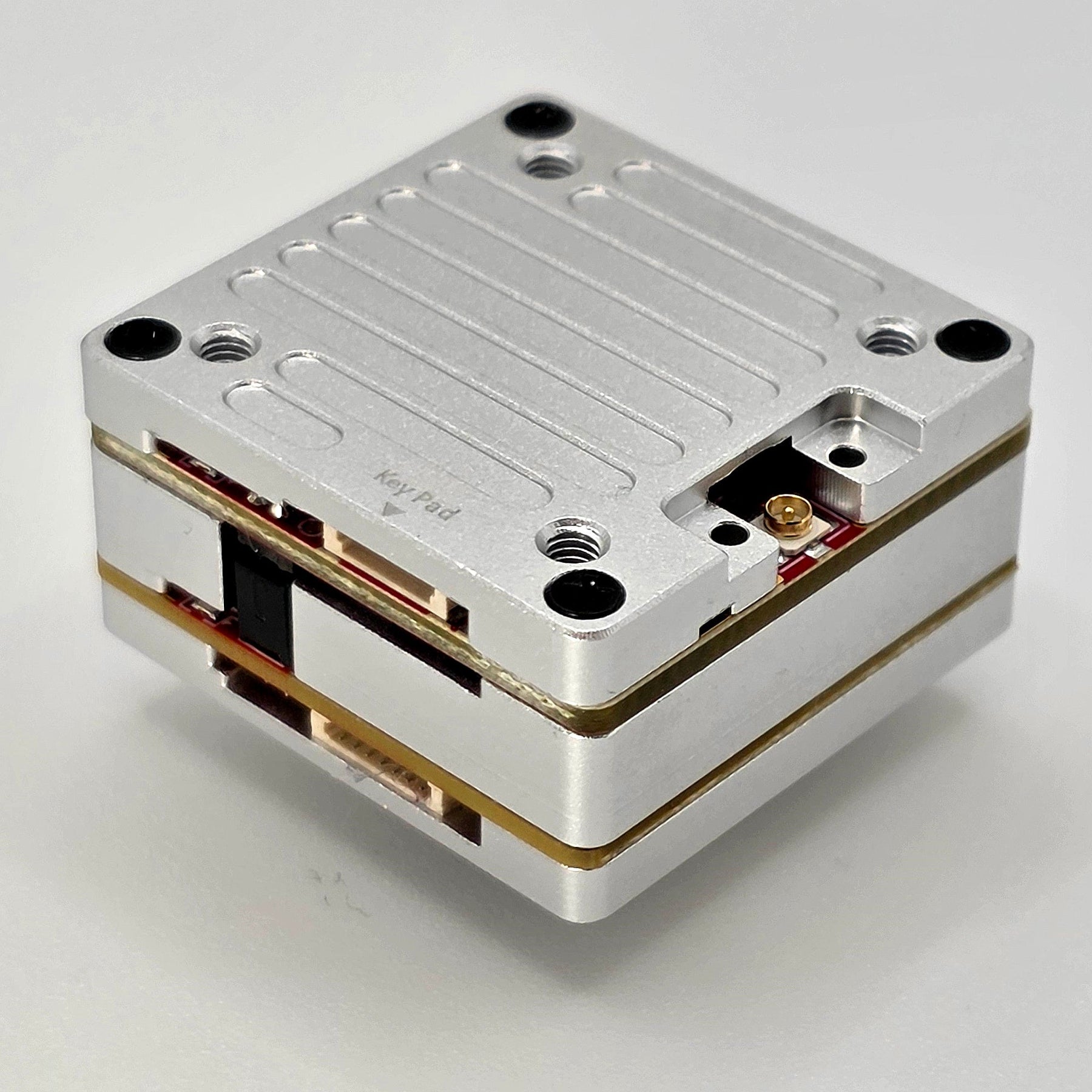

Divimath HDMI VTX – Digital 5.8 GHz HDMI Wireless Link for FPV and Embedded Systems

Divimath HDMI VTX
Ultra-Low Latency Digital Video Transmitter with HDMI Input

Bring true zero-latency digital video to any HDMI source. The Divimath HDMI VTX lets you wirelessly transmit live video from cameras, PCs, Raspberry Pi's, or any HDMI-equipped device - all with ~1 ms added latency and crystal-clear digital quality.

Note: not compatible with MIPI cameras like Divimath HD90 camera.

Key Features

• HDMI Input – Connect directly to cameras, computers, or embedded systems.
• Supported Resolutions / Frame Rates: 720p @ 60 fps, 1080p @ 30 fps, 1080p @ 24 fps (cinema mode)
• 1 ms Added Latency – True real-time video for FPV, training, and monitoring.
• Adjustable Power Output: 25 mW – 1000 mW
• 5.8 GHz ISM Band – Compatible with HDZero / Divimath digital receivers.
• Compact, Lightweight Design – Ideal for integration in field systems or mobile setups.
• Micro-HDMI Input - connect any HDMI device with supported resolution/frame rate - just use a micro-HDMI cable to connect.

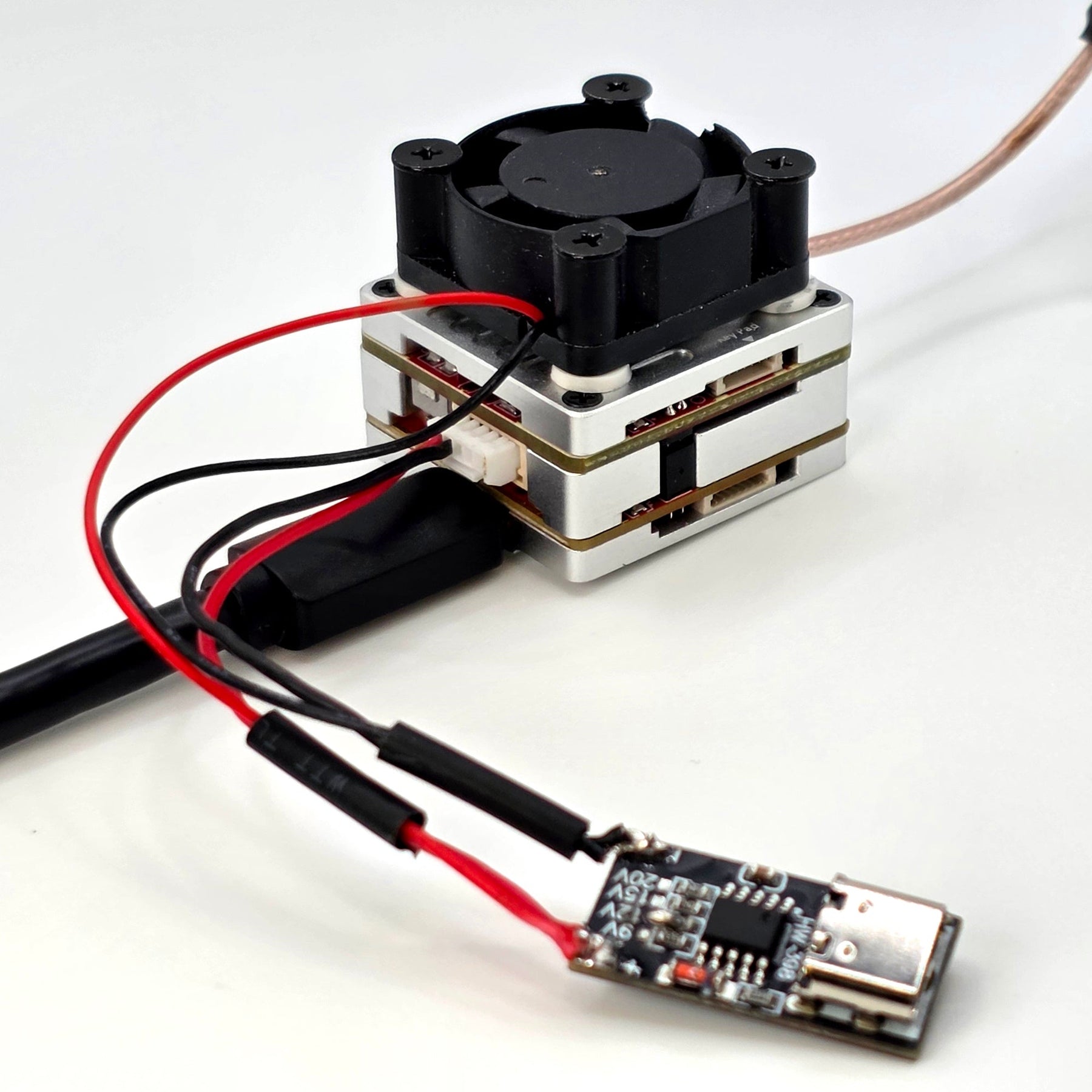

• Optional Accessory Kit: Cooling fan + USB-C PD trigger board for 12 V power input.

Versatile Applications

• FPV Relay Mode: Rebroadcast a received video feed with only 1 ms of extra delay.
• Wireless PC Streaming: Play PC games, simulators, or presentations in another room with virtually no lag.
• Camera-to-Monitor Link: Transmit from DSLR, cinema, or security cameras for untethered production monitoring.
• Custom Vision Systems: Pair with Raspberry Pi 2 W or embedded boards for AI vision, object tracking, or experimental imaging.

Performance Notes
The HDMI VTX is designed for natural, real-world imagery — not static text or spreadsheets. When used with live or cinematic content, it provides a seamless and realistic viewing experience with unmatched responsiveness.

In the Box

• HDMI VTX module
• Power + UART harness (JST GH locking connector)
• U.FL retention bracket and screws
• Keypad for adjusting VTX Settings (Band, Ch, Power, Encryption)

Accessory kit sold separately: cooling fan, USB-C PD trigger board, and M2.5 mounting hardware. https://www.divimath.com/products/hdmi-vtx-accessory-kit

NDAA Compliant

Country of Origin: Thailand
