Matrix 1S Brushless Flight Controller (4-in-1 HD)
Matrix 1S Brushless Flight Controller (4-in-1 HD)
Matrix 1S Brushless Flight Controller (4-in-1 HD)
Matrix 1S Brushless Flight Controller (4-in-1 HD)
Matrix 1S Brushless Flight Controller (4-in-1 HD)
Matrix 1S Brushless Flight Controller (4-in-1 HD)

Matrix 1S Brushless Flight Controller (4-in-1 HD)

$39.99
/
  • Low stock - 10 items left
  • Inventory on the way

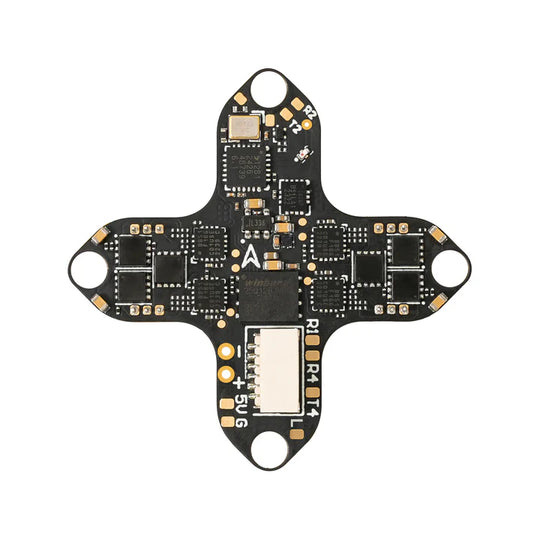

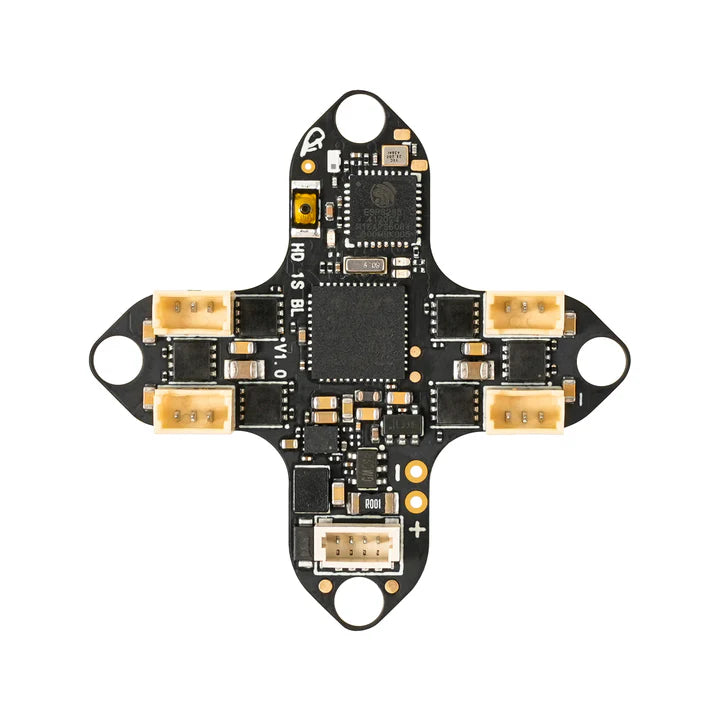

A versatile all-in-one board for 1S HD whoops, packing flight controller, 4-in-1 12A ESC, and ELRS 2.4G receiver into a rugged, lightweight cross-layout. Designed for straightforward digital-HD builds, featuring plug-and-play SH1.0 HD video port and JST motor connectors—no soldering needed. Advanced 3A BEC keeps image steady even at low voltage, while motor plugs make swaps quick and easy. High-performance G473 processor delivers smooth power, with up to 12A continuous and 18A peak ESC output to handle heavy HD setups.

Key Features:

  • Cross-board 4-in-1: FC, 12A x4 ESC, ELRS 2.4G RX

  • Plug-and-play SH1.0 6-pin HD digital port

  • Reliable 5V/3A BEC for stable HD video down to 2.85V

  • Tool-free JST1.25 motor plugs for fast repairs

  • Blackbox, current sensor, and voltage monitoring built in

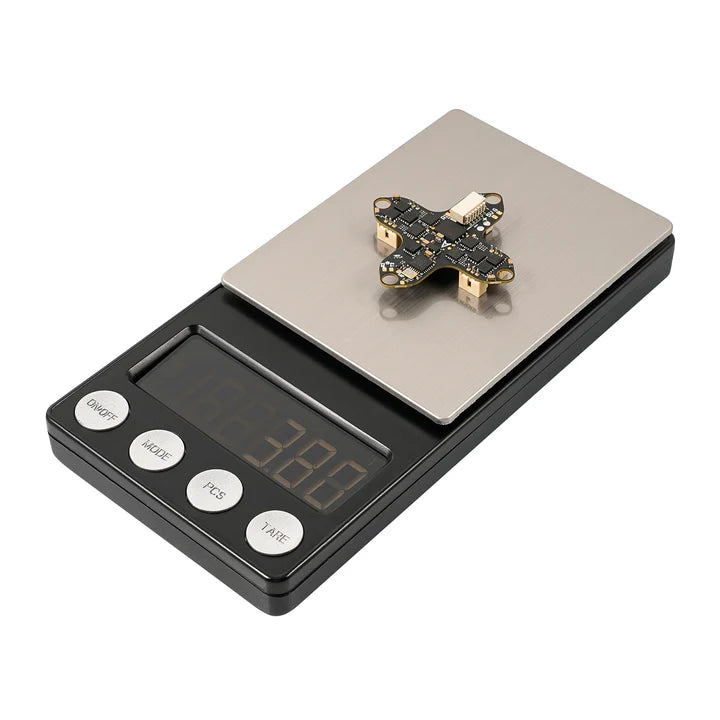

  • 25.5 x 25.5mm mounting, 3.2g ultra-lightweight

Built for easy, high-power 1S HD whoop builds needing crisp flight and stable video in every pack
