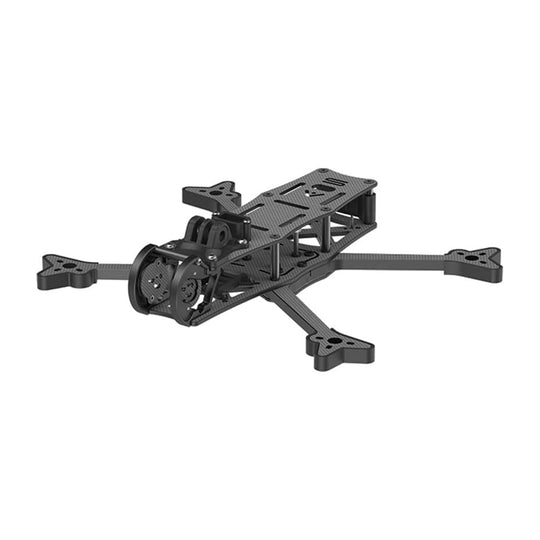

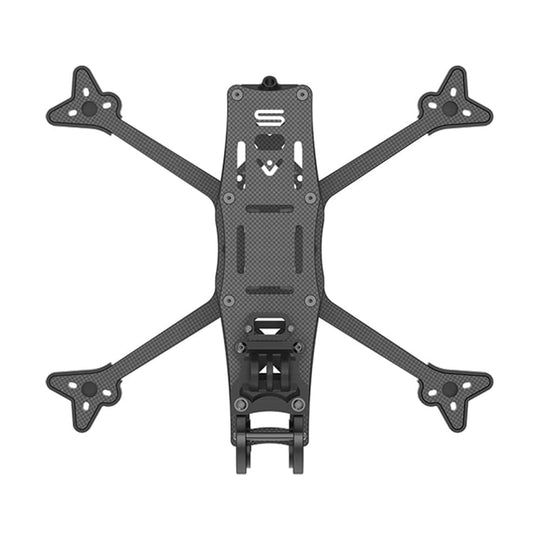

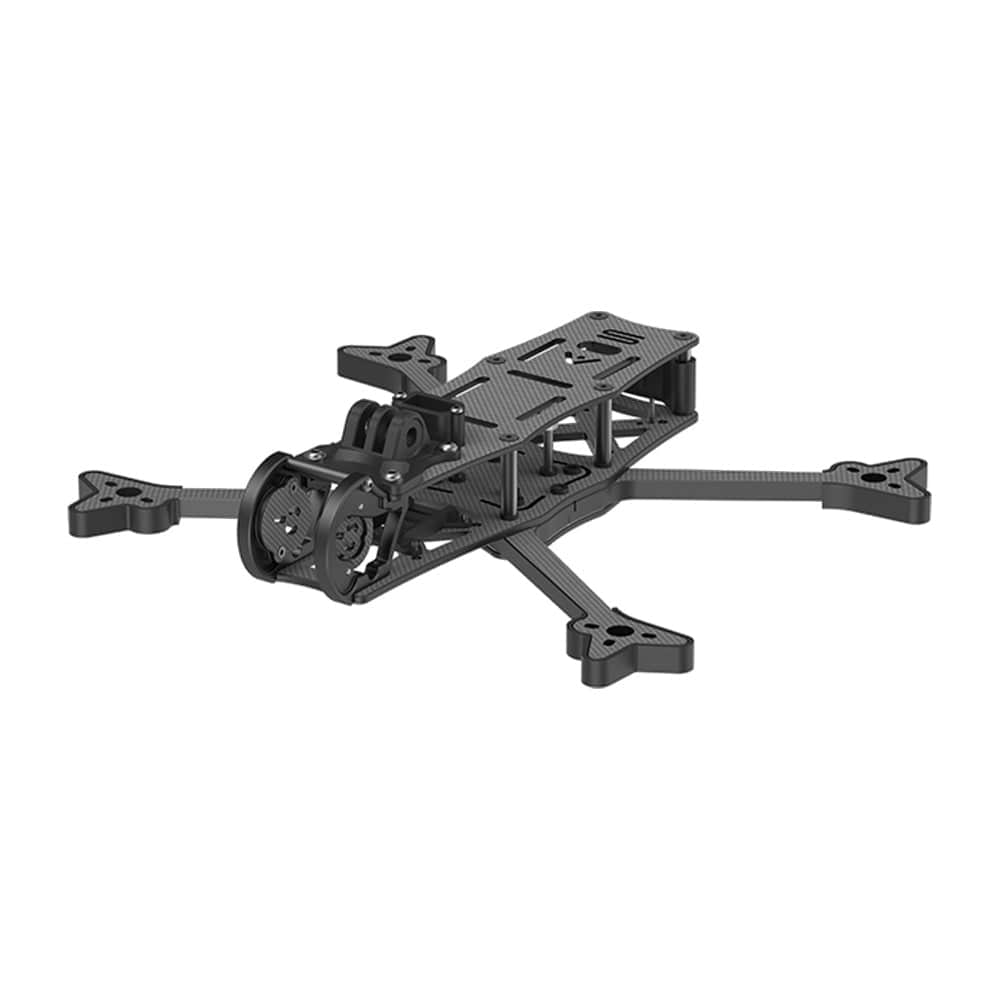

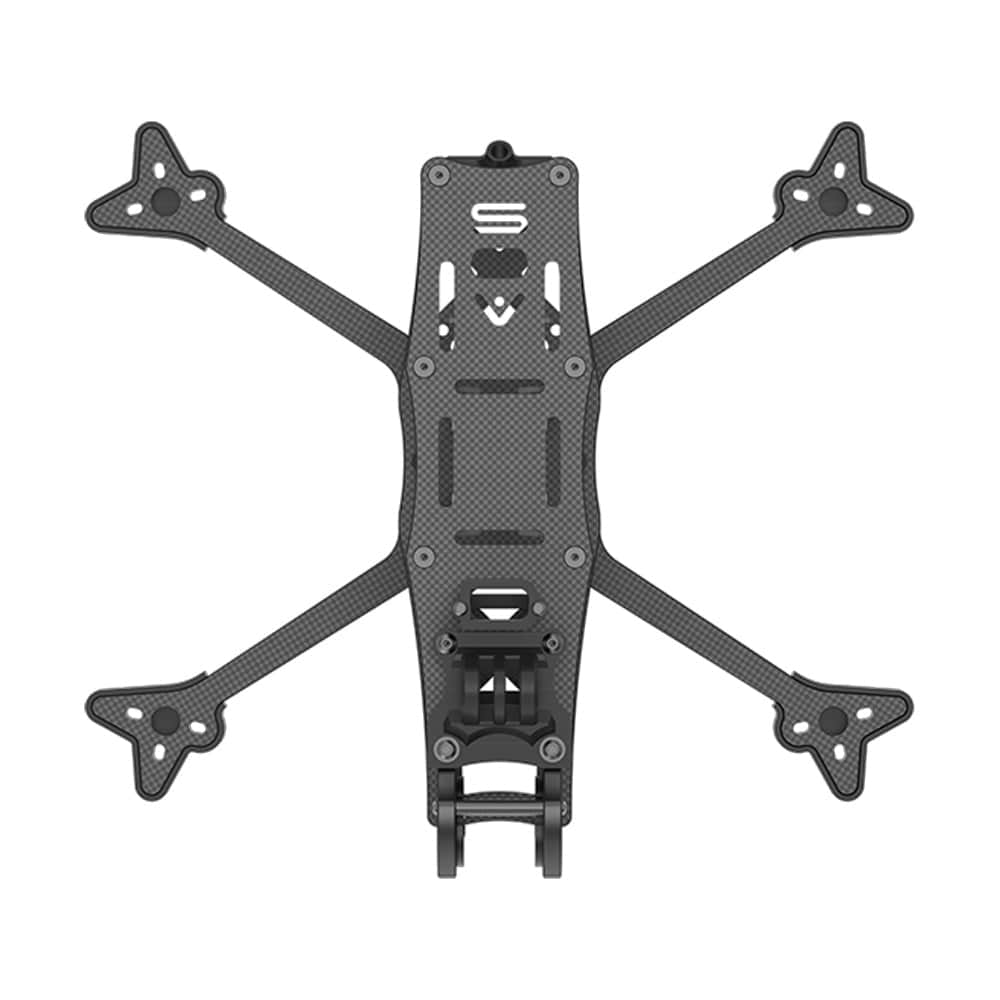

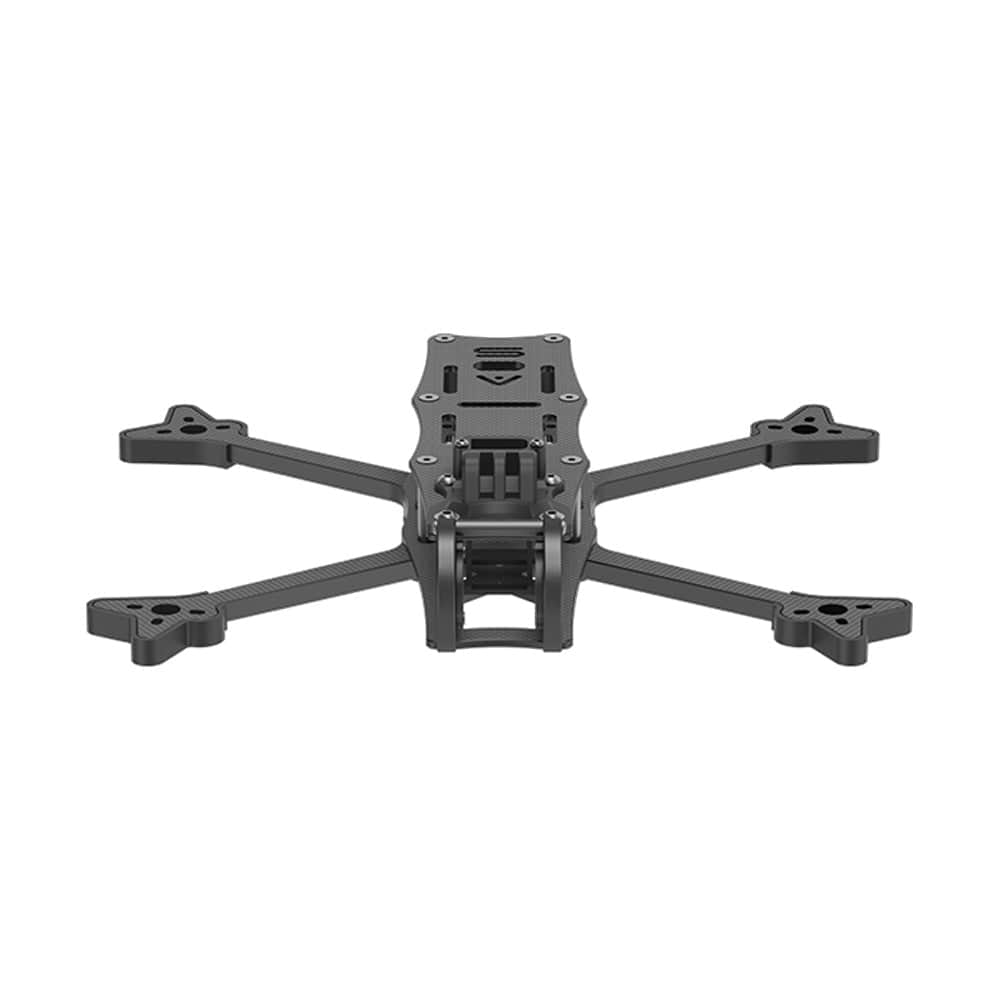

AOS RC V5 O4 Frame Kit - AOS 5"

The AOS RC V5 O4 Frame Kit is a compact and durable 5" freestyle drone frame designed for smooth flying and crystal-clear video. Now updated to support the DJI O4 and O4 Pro Air Units, it features advanced vibration-reducing technology, a strong aluminum camera cage, and a wide camera view with no props in sight. Compatible with a range of digital video systems and built for 5.3" props, it offers multiple mounting options for batteries, cameras, and electronics.

Features

• 32mm Rear Standoff Spacing (compatible with all AOS 5 antenna mounts)
• DJI O4, DJI O4 Pro, and DJI O3 compatible (soft mount + ND filters)
• 16 - 19mm motor mounting (supports all standard 5" motors)
• Three 30.5x30.5mm, 25.5x25.5mm, or 20x20mm stacks
• Supports Lengthwise or Toilet Tank battery mounting
• Supports 19-20mm cameras (hard or soft mounted)
• Reinforced 7075 Aluminum Camera Cage
• 28x28mm M3 GoPro Mounting Pattern
• AOS X-Cell Anti-Vibration Technology
• 155° FOV, no props in view
• Supports up to 5.3" Props


Specifications

• Flight Stack Mounting: 20x20 3mm / 25.5x25.5 2mm / 30.5x30.5 3mm
• Compatible: DJI O4 Pro, DJI O4, DJI O3 (Soft Mount + ND Filters)
• VTX Mounting: 20x20 2mm / 25.5x25.5 2mm / 30.5x30.5 3mm
• Motor Mounting: 19x19-3mm / 16x16-3mm
• Product Name: AOS RC V5 Frame Kit - 5"
• Rear Standoffs: 32mm
• Arm Thickness: 6mm
• Weight: 119-129g
• FOV: 155°


Includes

• 1x AOS RC V5 O4 Frame Kit - AOS 5"
• 1x Hardware Kit
• 1x TPU Parts Set
• 2x Battery Strap
• 2x Battery Pads
