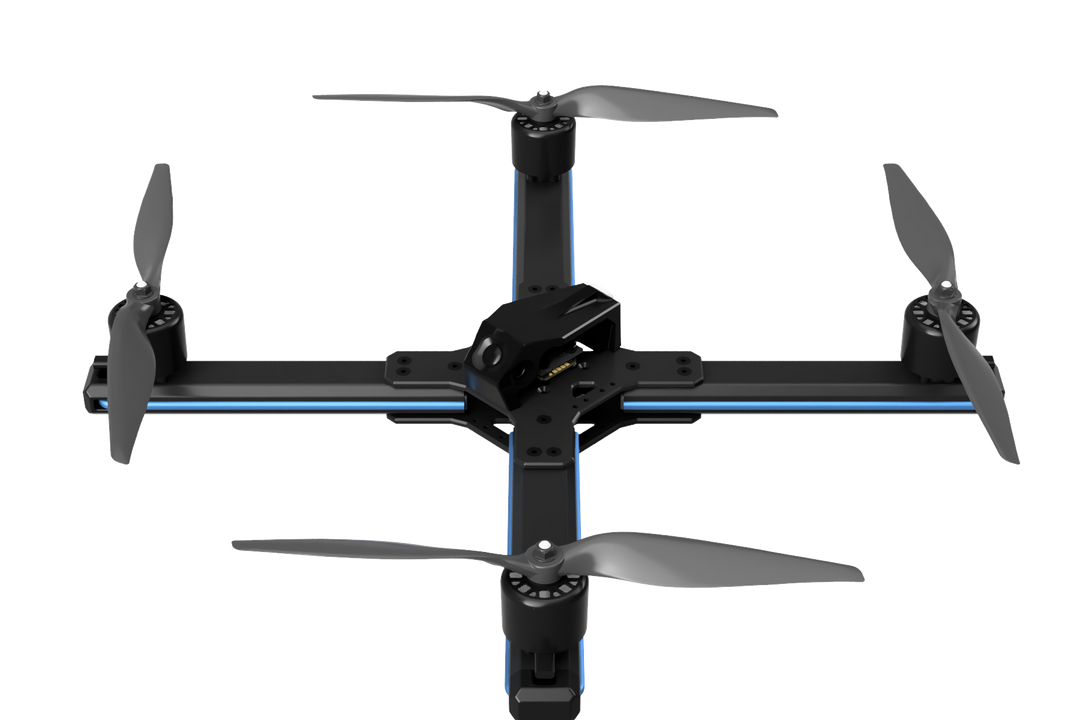

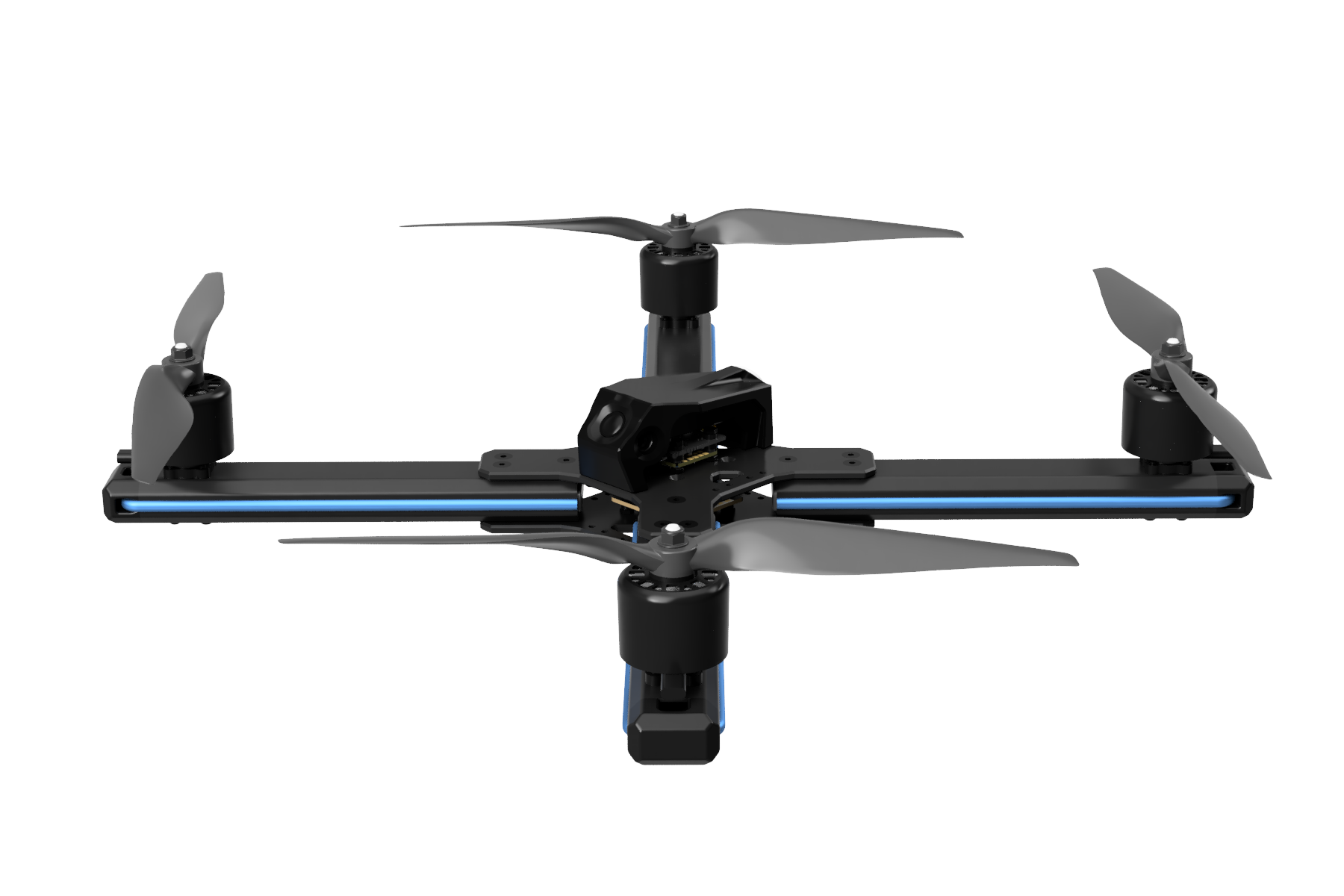

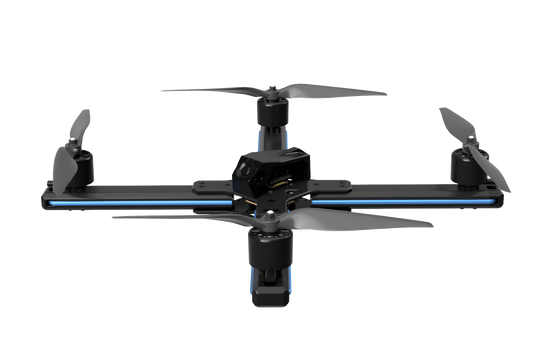

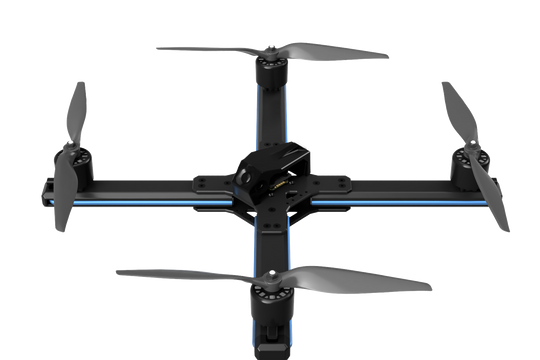

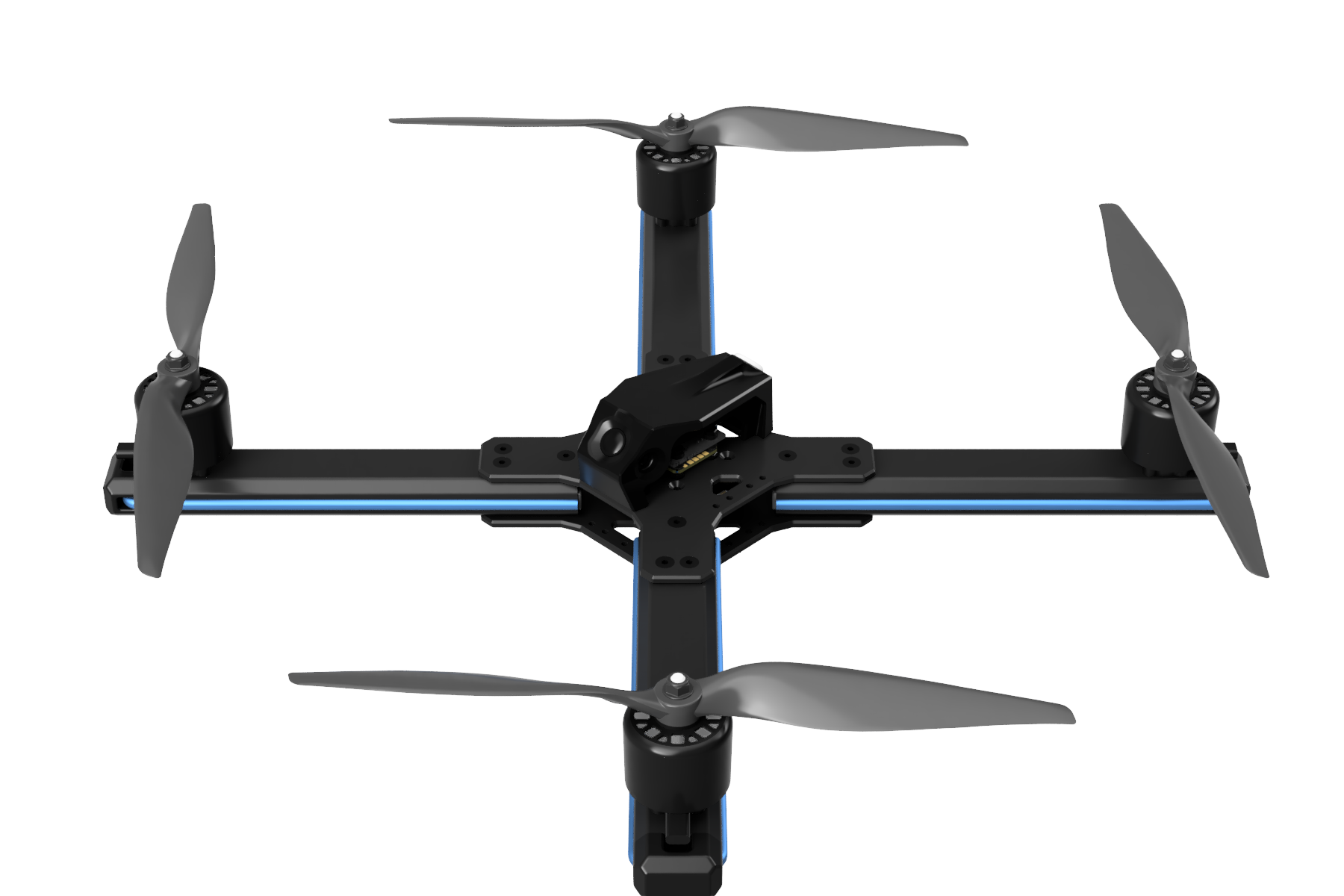

AER (Aero Elite Racing) Frame Kit

Built for speed. Engineered for precision.

The AER Frame is the official foundation of the Aero Elite Racing spec-class platform, designed for pilots who demand professional performance, strength, and balance.

Made from T700 carbon fiber, the frame includes four carbon fiber hex arms and two precision-cut top & bottom plates for exceptional rigidity with minimal weight. The hex-arm geometry improves torsional stiffness and crash resistance while keeping flight characteristics predictable and race-ready.

Each kit ships with a full high-strength hardware set so you can build to competition standards right out of the box. An optional TPU accessory kit (arm inserts, camera pod, protective mounts) can be purchased separately or 3D printed. not true during limited time offer.

FEATURES:

• Official Aero Elite Racing spec frame
• Premium T700 carbon fiber construction — ultra-rigid and crash-resistant
• Optimized weight distribution for stable, agile flight
• Clean, modular design for quick assembly and field service
• Aero-tuned geometry for minimal drag and maximum responsiveness

WHAT'S IN THE PACKAGE:

• Limited time offer: 4 x TPU arm inserts (front & rear) + TPU canopy (Black) + TPU double XT60 connection system
• 4 x Hex T700 tube arms
• 2 x 4mm T700 Top/Bottom plate
• 24 × M4 × 12 mm countersunk screws — Steel YSF 12.9 (Black)
• 4 × M3 × 20 mm countersunk screws — Steel YSF 12.9 (Black)
• 4 × M3 × 20 mm button head screws — Steel YSF 12.9 (Black)
• 16 × M3 × 25 mm button head screws — Steel YSF 12.9 (Black)
• 4 × M3 brass heat inserts
• 12 × M4 × 7.0 × 17 mm threaded hex spacers — Steel
• 16 × M3 × Ø6.0 × 17 mm non-threaded round spacers — Aluminum

RECOMMENDED PARTS:

• HDZero Runcam Nano 90
• HDZero Race V3 VTX
• TBS Triumph Antenna
• Hummingbird 305 Flight Stack
• Demon Power Systems Surge 3120 Beast Class Motor - 700kv option
• COB LED
• Tattu 2200mah 6S 95C 22.2V R-Line Lipo Battery

SUMMARY: Competition-grade frame built to Aero Elite Racing standards. Engineered for durability, precision, and performance with premium T700 carbon fiber and a complete hardware kit. Customize with optional TPU parts or 3D print your own.
