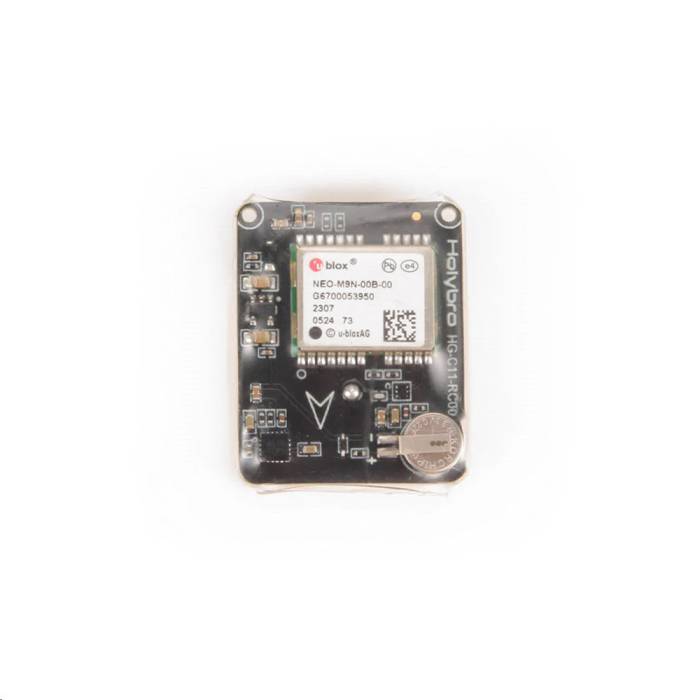

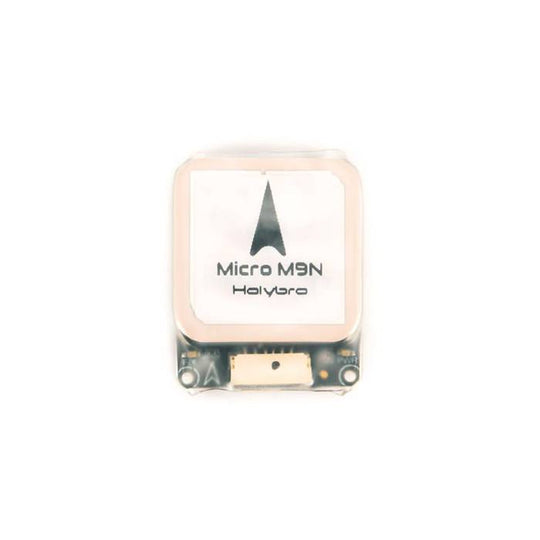

Holybro Micro M9N GPS Module w/o Case
The Holybro Micro M9N GPS is a compact and high-performance GPS module utilizing the advanced multi-constellation GNSS technology powered by the u-blox M9. It's designed to receive and track multiple GNSS systems simultaneously, making it a versatile choice for various navigation applications.
Features
- Rechargeable Backup Battery
- Integrated IST8310 Compass
- Multi-Constellation Support
- High-Precision Positioning
- Active Antenna Circuitry
- High-Gain Antenna
- Compact Design
Specifications
- Other: LNA MAX2659ELT+ RF Amplifier, Rechargeable Farah capacitance, Low noise 3.3V regulator
- Number of Concurrent GNSS: Up to 4 GNSS (BeiDou, Galileo, GLONASS, GPS, QZSS)
- Frequency Band: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
- GNSS Augmentation System: EGNOS, GAGAN, MSAS and WAAS, QZSS: L1S
- Nav. Update Rate: Up to 25 Hz (4 concurrent GNSS)
- Antenna: 25 x 25 x 4 mm ceramic patch antenna
- Power Consumption: Less than 200mA @ 5V
- Dimensions: 32 x 26 x 9mm (w/o Case)
- Output Protocol: UBX (U-blox), NMEA
- Product: Holybro Micro M9N GPSÂ
- Operating Temperature: -40-80C
- GNSS Receiver: Ublox M9N
- Default Baud Rate: 115200
- Input Voltage: 4.75-5.2V
- Weight: 14g (w/o Case)
- Port Type: JST-GH-6P
- Accuracy: 1.5m CEP
- Compass: IST8310
Downloads
Includes
- 1x Holybro Micro M9N GPS Module w/o Case
- 1x JST-GH 6pin Colored Silicon Cable 15 cmÂ
- 1x JST GH 6 Position Connector 15 cm
