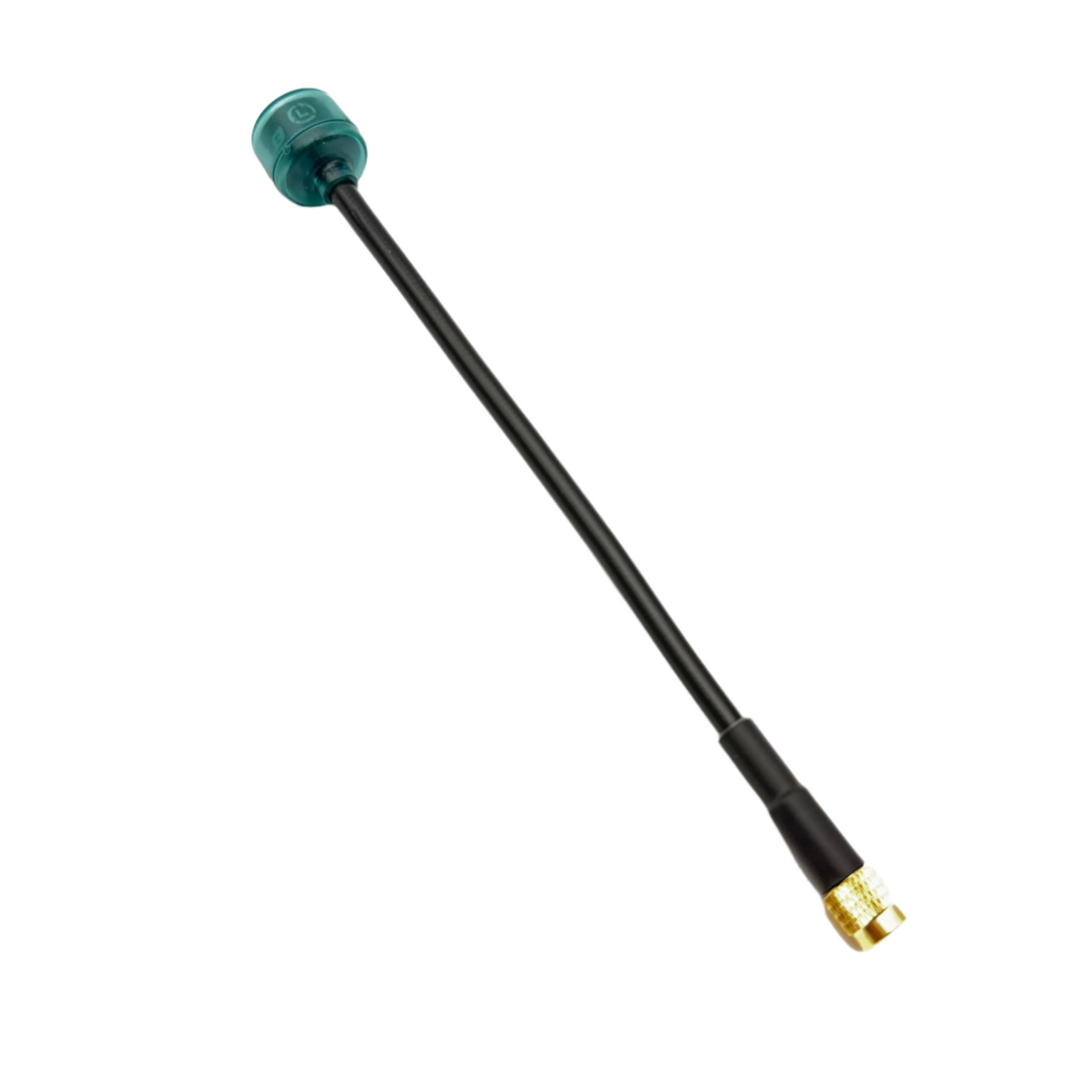

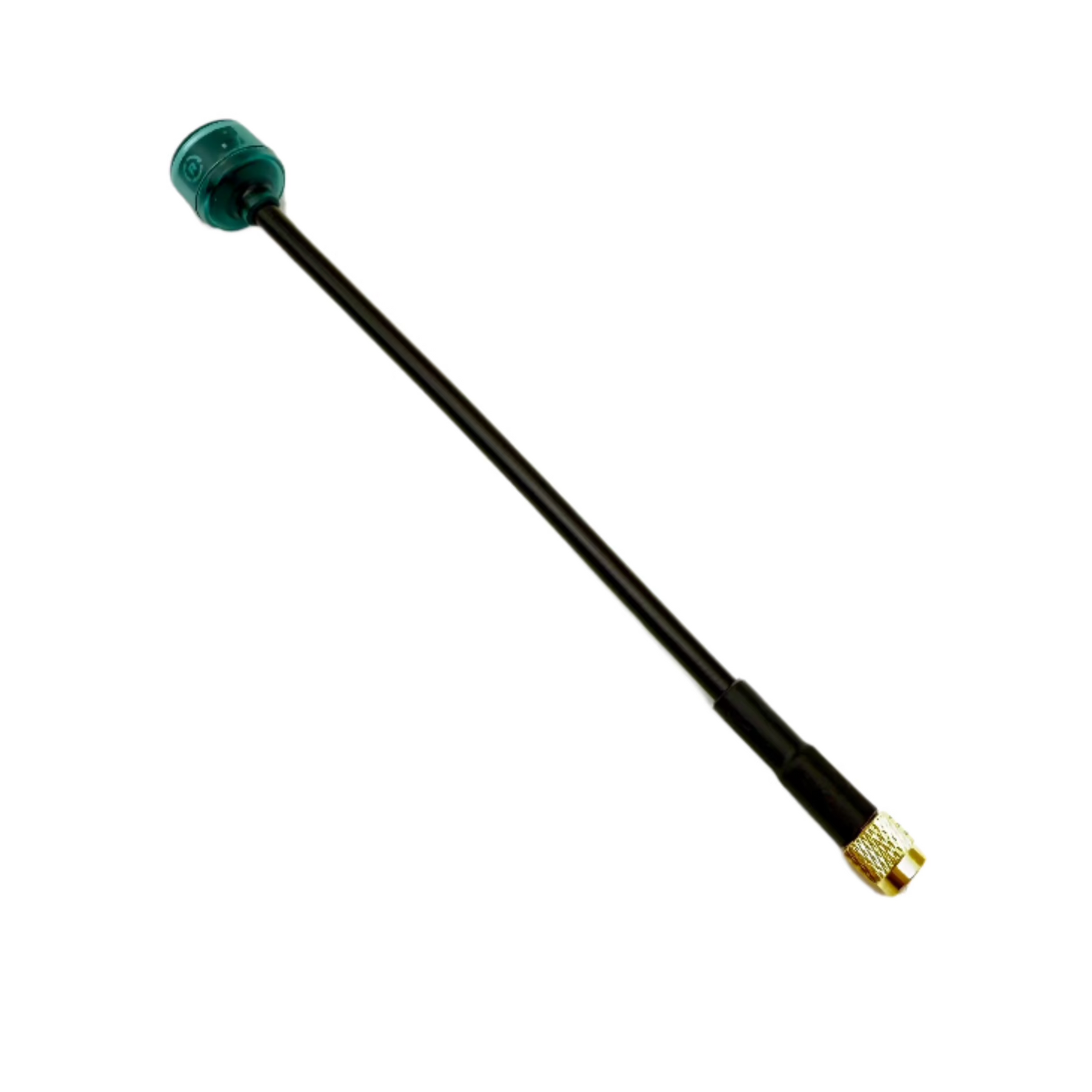

TrueRC Core 5.8 SMA (160 mm)

The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike. This  omnidirectional antenna start with a refined RF design that provide excellent consistency within units and various cables configurations. We then added a very durable outer shell that protect the antenna from the inevitable crashes. Finally, it is available in three different colors to suit your style.

Features

• Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
• Clear indication of polarization direction
• Smooth radiation pattern with even gain in all directions
• Excellent axial ratio and efficiency
• Flexible coax cable option that deflect impacts
• Exclusive knurled True-SMA for easy tightening

Specs:

• Gain: 1.9dBic
• Polarization: RHCP or LHCP
• Cross-Polar Rejection: -10 to -20dB
• Bandwidth: 5.5GHz-6.1GHz
• Radiation Efficiency: 98%
• SWR: <=1.2:1
• Weight: Vary with connector/cable option
• Dimensions(head): 16.9mm dia. x 13.1mm height.
• Length: Vary with cable option
• Cable: TrueRC RG316S/RG402/RG178 coax
