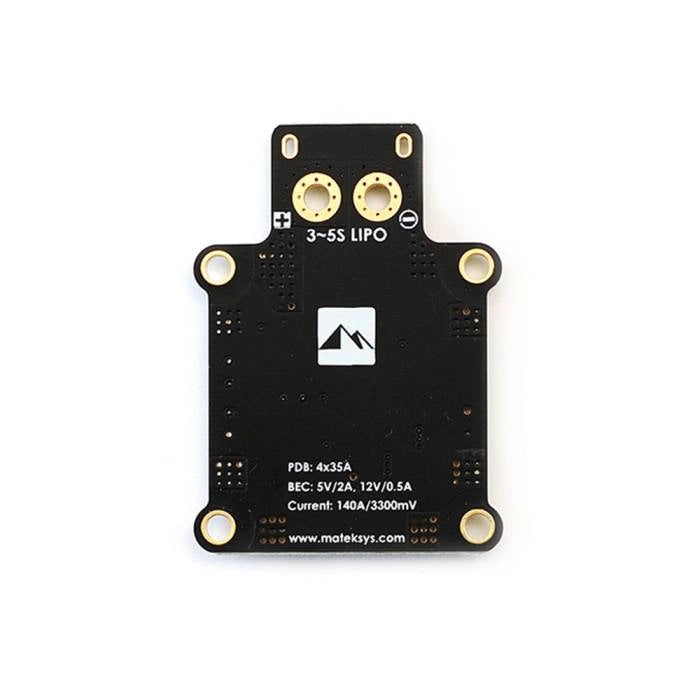

MATEKSYS PDB-XPW with Dual BEC & Current Module 140A
MATEKSYS PDB-XPW with Dual BEC & Current Module 140A
MATEKSYS PDB-XPW with Dual BEC & Current Module 140A
MATEKSYS PDB-XPW with Dual BEC & Current Module 140A

MATEKSYS PDB-XPW with Dual BEC & Current Module 140A

$9.99
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way

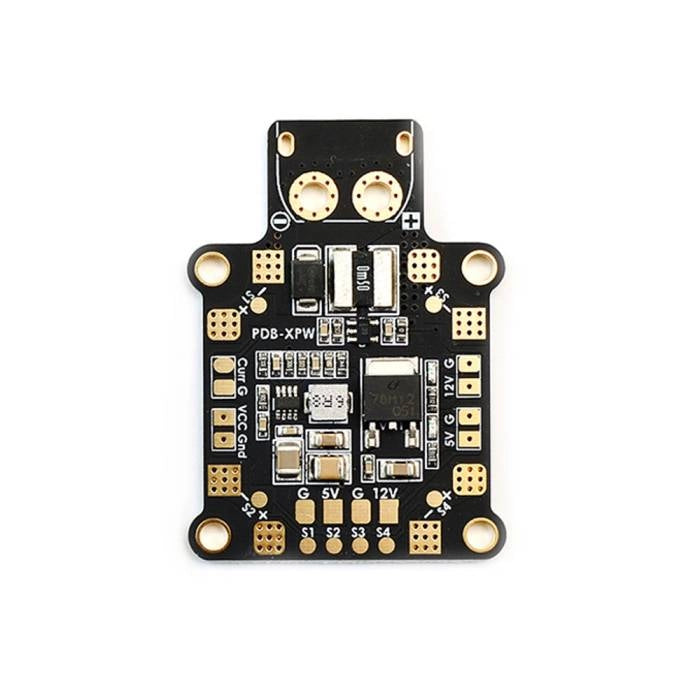

Matek PDB-XPW is a power distribution board designed for X-frame FPV quads, distributing LiPo power to 4 ESCs while providing regulated 5V BEC for FC/receivers and 12V linear output for VTX/cameras. Built-in 140-150A current sensor outputs analog telemetry via 3.3V ADC, with XT60PW input socket for side-mounted battery access. LED indicators show 5V/12V status and short-circuit protection handles faults safely.

Features

  • 4 pairs of ESC pads rated 35A each for X-config stacks.

  • Dual BEC outputs with overcurrent/short protection.

  • 2oz copper 4-layer PCB for heat dissipation.

Specs

  • Input: 9–21V (3–5S LiPo).

  • Current sensor: 140–150A continuous.

  • 5V BEC: 2A continuous (2.5A burst), 40mV ripple.

  • 12V BEC: 0.5A continuous (0.8A burst), drops ~1V@3S.

  • Size/weight: 36×50×4mm (7g) or 36×58×10.5mm (11g) w/XT60PW.
