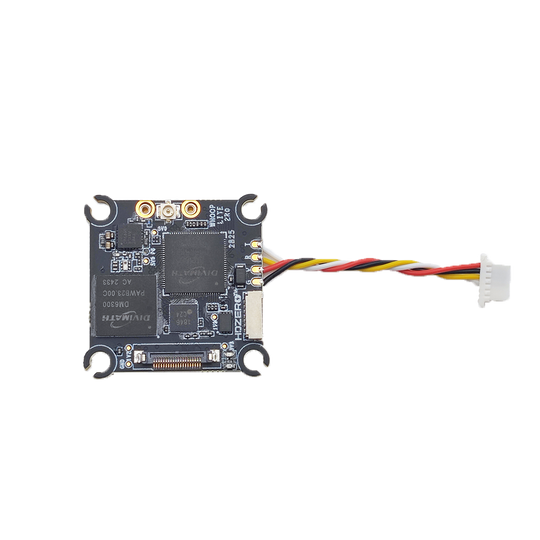

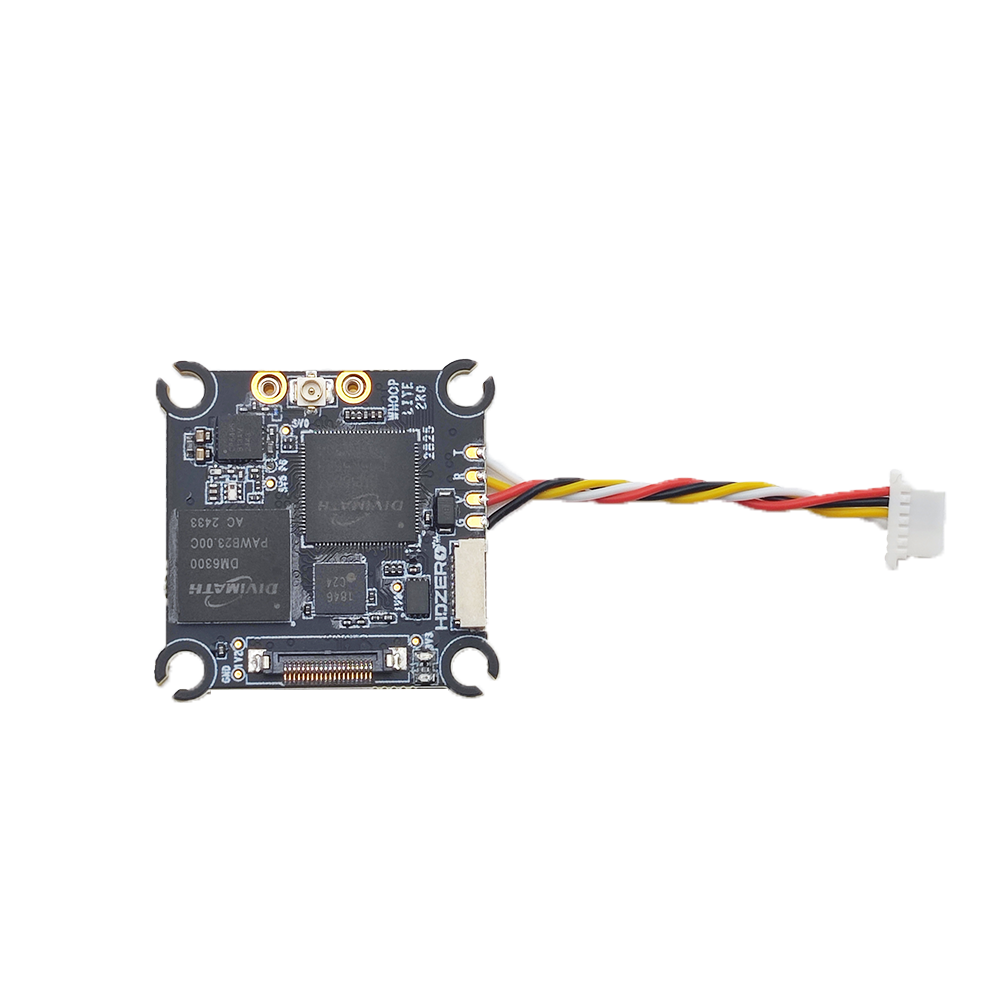

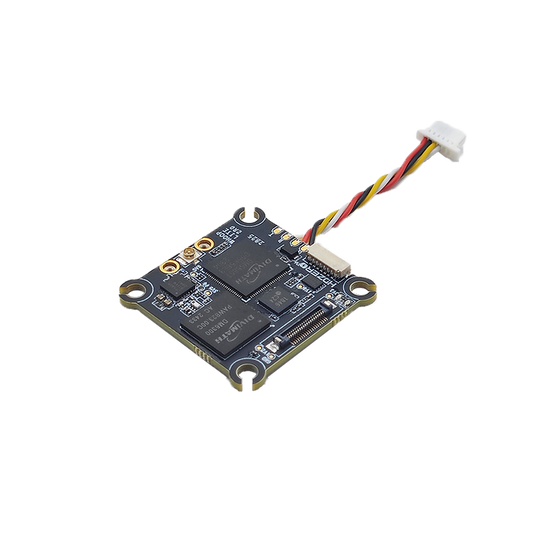

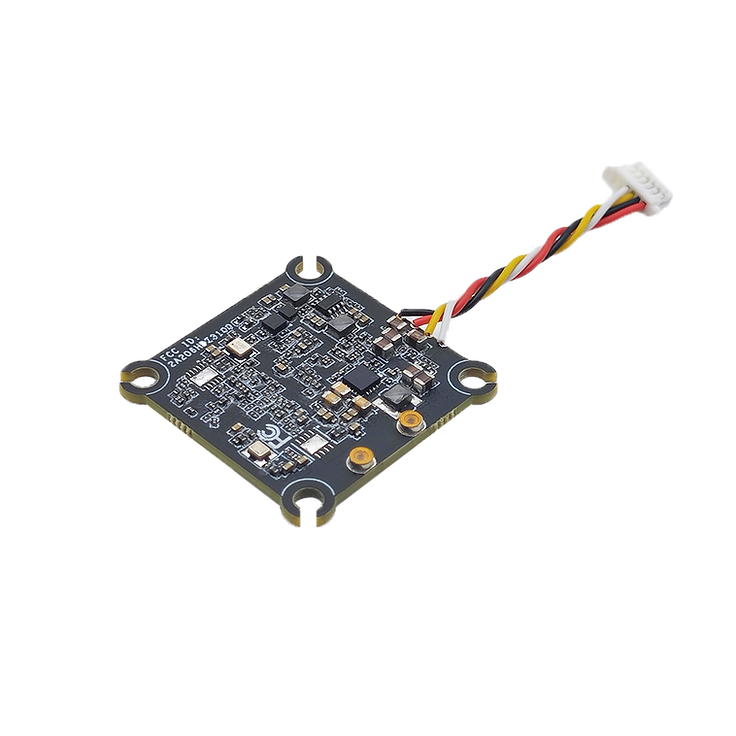

HDZero Whoop V2 VTX

The HDZero Whoop V2 VTX refines the benchmark for micro digital HD video, delivering uncompromising reliability and vivid performance in your smallest builds. Designed for everything from 80mm whoops to 4-inch micro drones, this upgraded transmitter features a reinforced PCB, factory-soldered Betaflight plug harness, and a brass antenna retention bar that locks your U.FL connector tight through the roughest races and freestyle sessions. Whether you’re pushing through crowded gates or exploring new lines, the Whoop V2 ensures your HDZero MIPI camera outputs 540p90, 720p60, or 1080p30 feeds at up to 200mW, with rock-solid low latency over 5.8GHz always at your fingertips.

Pre-installed mounting hardware and secure cabling makes installation a breeze, eliminating hassle from tight builds while boosting impact resistance where it matters most. Power flexibility (1S–3S, 3–12.6V) keeps compatibility high, while smart details—like included M2 rubber grommets and a brass bar—deliver protection you’ll appreciate after every crash. Upgrade your micro drone fleet with tournament-grade durability and precision HDZero clarity trusted by champions worldwide.

Specs

• Weight: 5.4g

• Mounting: 31 × 31mm (25.5 × 25.5mm M2 pattern)

• Video output: Up to 200mW (5.725–5.850GHz)

• Input voltage: 3–12.6V (1S–3S)

• Camera support: All HDZero MIPI cams (540p90, 720p60, 1080p30)

• Latency: Ultra-low, best-in-class for digital FPV

• Wire harness: Pre-soldered, digital plug standard

• Crash durability: Thicker PCB, brass antenna bar

• Included: HDZero Whoop V2 VTX, 5x power/UART cables, 2x zip ties, 4x M3→M2 grommets, 3x u.FL antenna screws, 1x metal bar

Notes: No reverse-polarity protection; ≥1.5A recommended for 5V pads; direct 1S power can drop on hard throttle; external capacitor recommended for 3S builds.

Ready to fly harder? Gear up with official Five33 confidence—the Choice of Champions.
