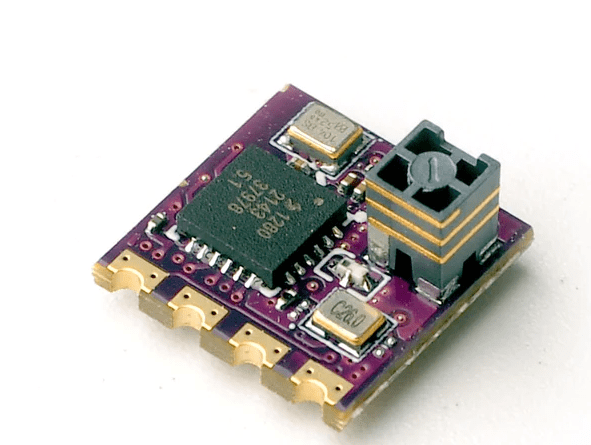

Happymodel 2.4G ExpressLRS EP2 TCXO RX Receiver Module

Happymodel 2.4G ExpressLRS EP2 TCXO RX Receiver Module

$17.99
/
  • In stock, ready to ship
  • Inventory on the way

EP2 ELRS receiver is the hottest ExpressLRS receiver since it was released. Now the new TCXO version EP series receiver apply “temperature compensated crystal oscillator”, accurate frequency and excellent performance in extreme temperature environments make these TCXO much reliable.





Specifications:



  • Type: ISM2.4GHz

  • ESP8285 MCU

  • SX1280(SX1281)IMLTRT RF Module

  • SMD Ceramic antenna

  • Frequency Range: 2400 MHz to 2500 MHz

  • Receive refresh rate: 25HZ~500Hz

  • Working voltage: 5v

  • Weight: 0.44 gram

  • Dimension: 10mm*10mm*6mm

  • Peak gain: 3.7dB

  • Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version

  • Built-in a TCXO (temperature compensated crystal oscillator)


Package Includes:



  • 1 x Happymodel 2.4G ExpressLRS EP2 TCXO RX Receiver Module
