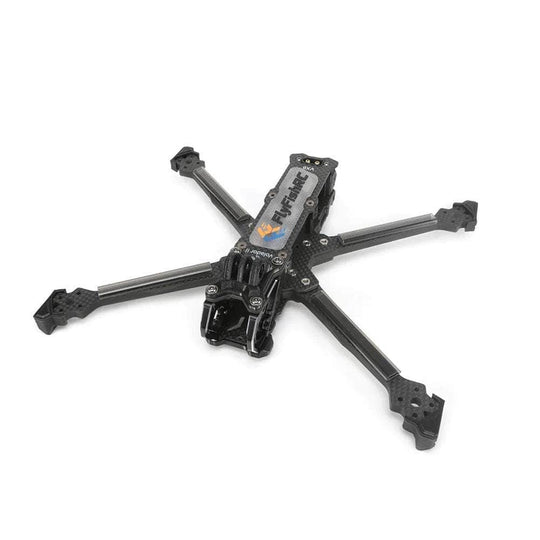

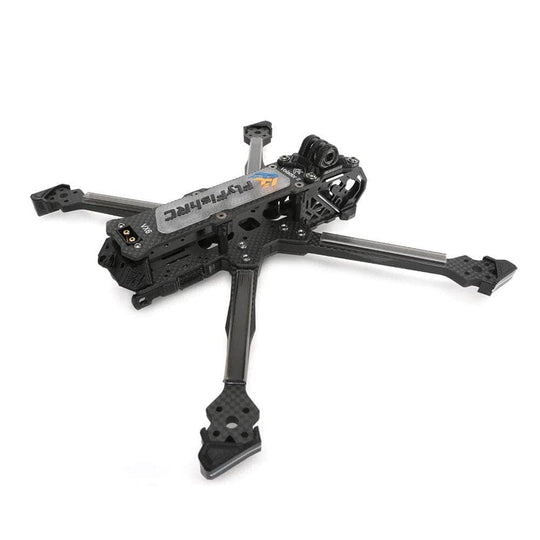

FlyFishRC Volador II VX6 HD O3 6" Freestyle Frame

Assembly Guide

Features

• High-quality T700 carbon plate
• 7075 aluminum alloy camera mounting plates for enhanced protection
• Cleverly designed thickened arms
• The integrated XT60 connector for safety and reliabililty
• High quality TPU parts
• Unique anti-slip battery pad
• 12.9 strength hardware coated with Loctite
• Compatible with DJI O3 Air Unit/Caddx Vista/Runcam link Wasp/Avatar HD, etc
  (Not compatible with DJI FPV Air Unit)

Specifications

• Arm Thickness: 6mm
• Top plate thickness: 2.5mm
• Middle plate thickness: 3mm
• Bottom plate thickness: 3mm
• Propeller size: 6~6.1 inch
• Material: T700 carbon plate
• FPV cam spacing: 19mm/20mm
• Weight: 216.1g(with TPU parts)  Wheelbase: 260mm
• Total Dimensions: 209mm x 159mm
• Stack mounting holes: 20mm x 20mm/30.5mm x 30.5mm(M3)
• VTX mounting holes: 20mm x 20mm/25.5mm x 25.5mm(M2)
