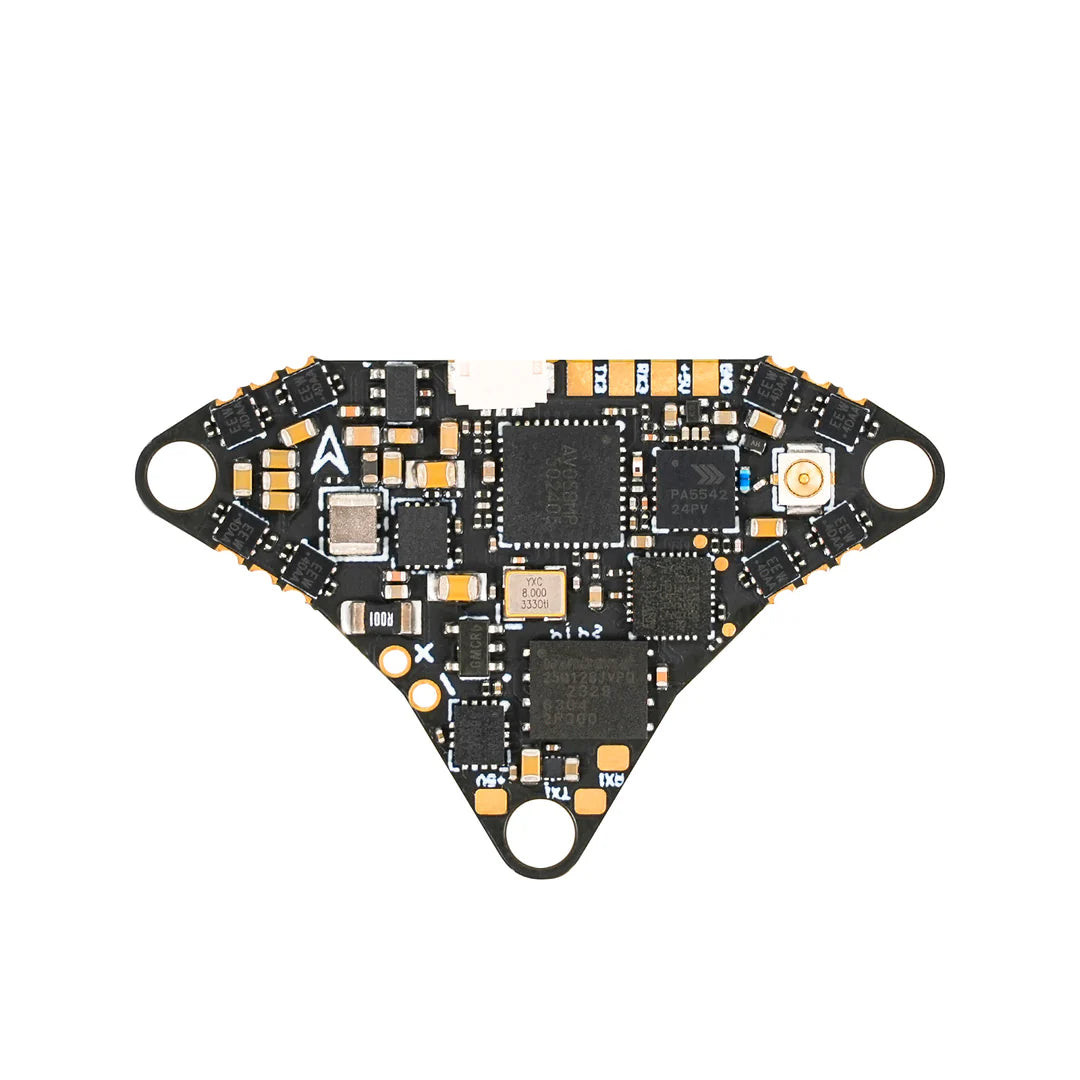

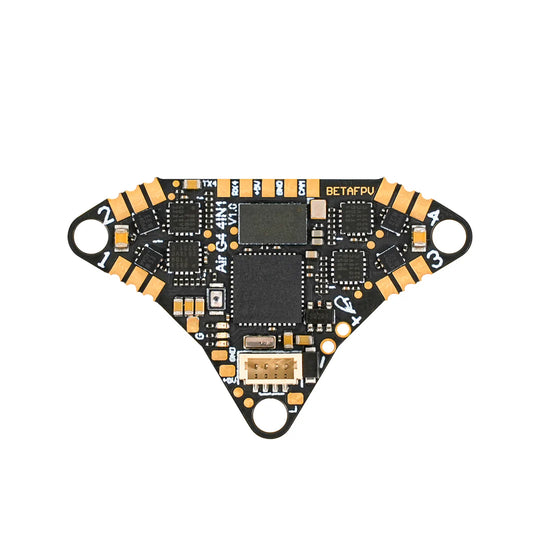

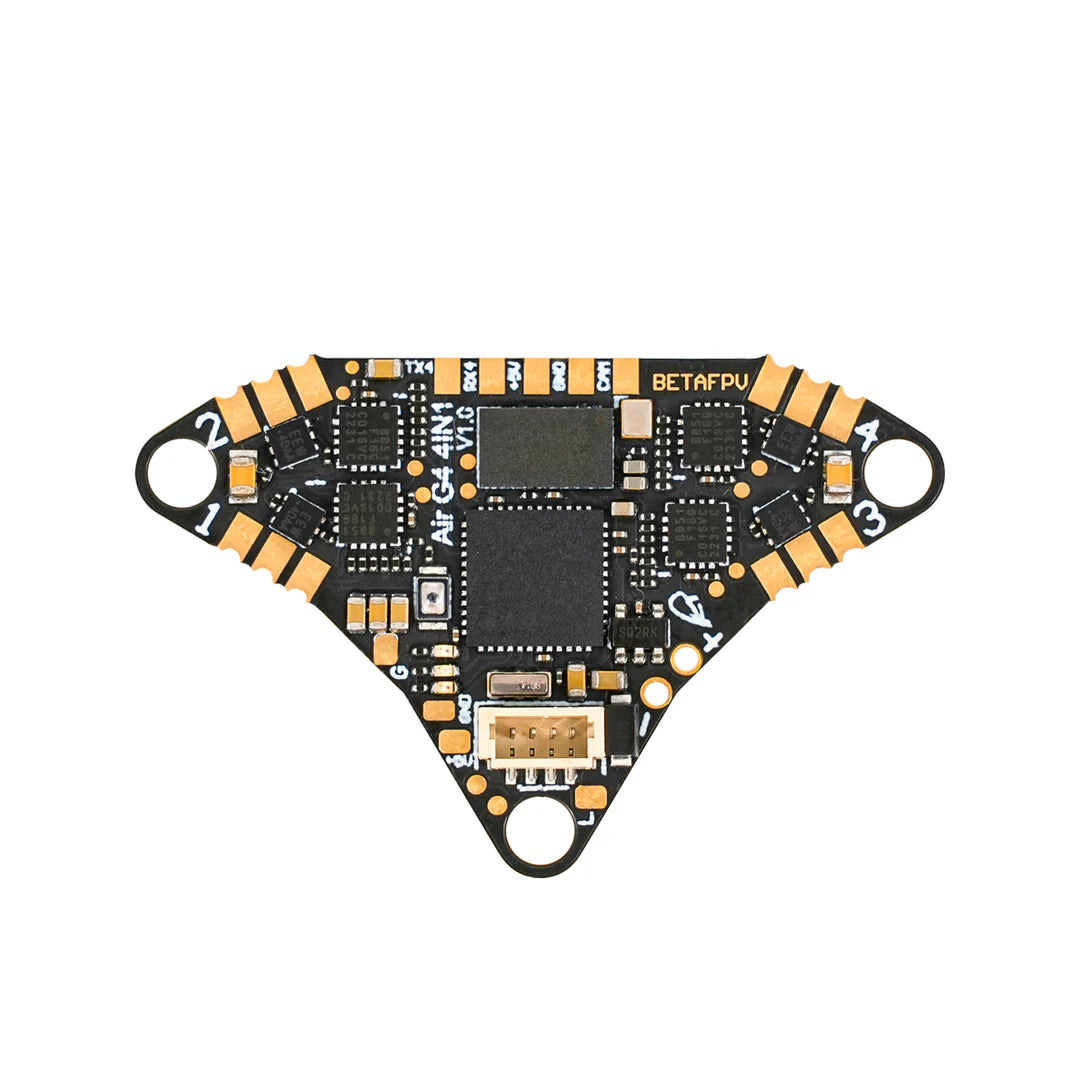

BETAFPV Air 4-in-1 AIO - G4 FC + 1S ESC + 400mW VTX + OSD

Specifications

FC

• Weight: 2.9g (4IN1 Version) / 3.6g (5IN1 Version)
• Mounting Hole Size: 26mm x 26mm
• CPU*: STM32G473CEU6 (168MHz)
• Six-Axis: ICM42688P (SPI connection)

• Blackbox Memory: 16MB
• Sensor: Voltage&Current
• 5V BEC*: 5V 3A
• USB Port: SH1.0 4-Pin
• Built-in ESC with 5A continuous
• RX: Serial ELRS 2.4G (V3.4.3) (Only 5IN1 Version)

• 4IN1 Version: FC+ESC+OSD+VTX
• 5IN1 Version: FC+ESC+OSD+VTX+RX

ESC

• Input Voltage: 1S
• FC Firmware Version: Betaflight_4.5.0_BETAFPVG473
• ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware
• Signal Support: D-shot300, D-shot600

VTX

• Output Power: 25/100/200/400/PIT
• Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
• Channel SEL: SmartAudio2.0
• Modulation Type: FM
• Frequency Control: PLL
• All Harmonic: Max -50dBm
• Frequency Stability: ±100KHz (Typ.)
• Frequency Precision: ±200KHz (Typ.)
• Channel Carrier Error: ±1.5dB
• Antenna Port: 50 Ω
• Operating Temperature: -10℃~+80℃
