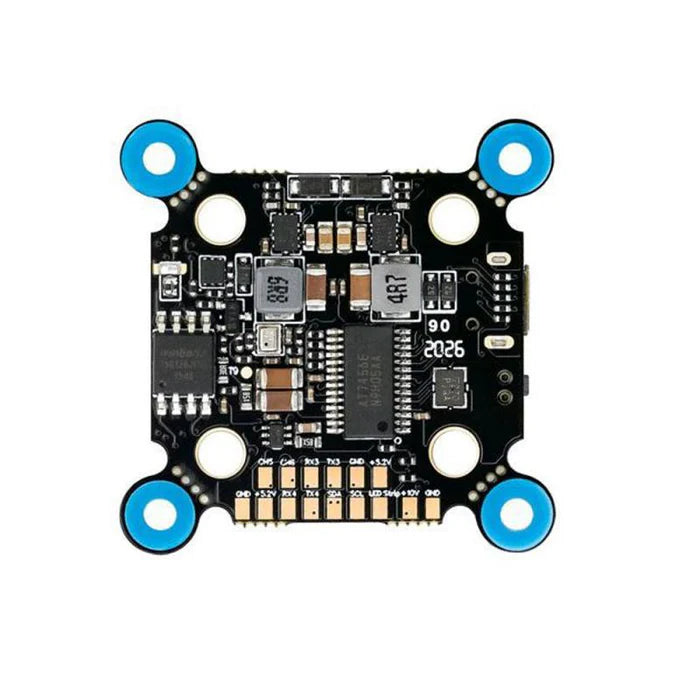

HobbyWing XRotor Convertible F7 Flight Controller HD DJI Plug and Play - 30x30 & 20x20mm
- Low stock - 10 items left
The new Hobbywing convertable F7 flight controller is equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor. It can perfectly support bidirectional D-Shot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity Flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data.
Check out all our Flight Controllers and the rest of our HobbyWing Products!
Combine this FC with Hobbywing 40A 4in1 ESC or Hobbywing 60A 4in1 ESC and you will have a solid stack!
**Must set CW to 0 in Betaflight.
Specifications:
- Compatible with (Multirotors) Quadcopters
- Firmware HOBBYWING_XROTORF7CONV
- FC Programming Supported
- Programming via Betaflight/ Cleanflight-configurator
- Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
- Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
- OSD Built-in
- Voltage Monitoring Supported
- Current Monitoring Supported
- External Buzzer Supported
- LED Control Supported
- BEC 5V @ 1.5A ; 10V @ 1.5A
- Size 32x32mm
- Weight 3.3g
Package Includes:
- 1 x HobbyWing XRotor Flight Controller F7 - 30x30 & 20x20mm
Warranty Policy:
If any warranty needs for this product arise, please note that the manufacturer of this product is one of the few manufacturers we carry that requests the end user to contact them directly for any troubleshooting or possibly defective items. We must follow these policies set by these manufacturers. Please make sure to contact them directly if you feel your product is defective in any way. Reach out to us if you need an email address or contact link for this manufacturer.
