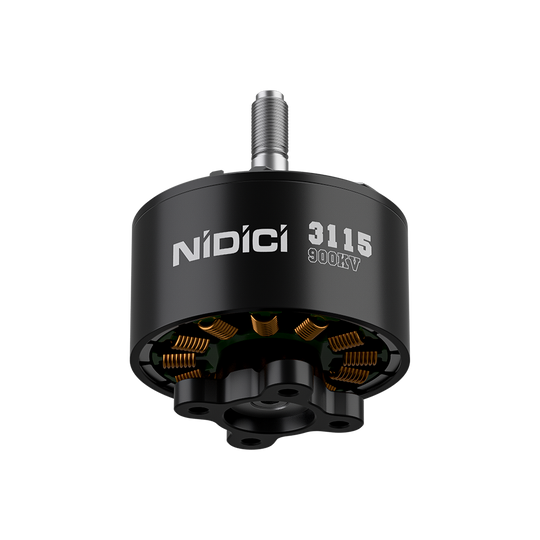

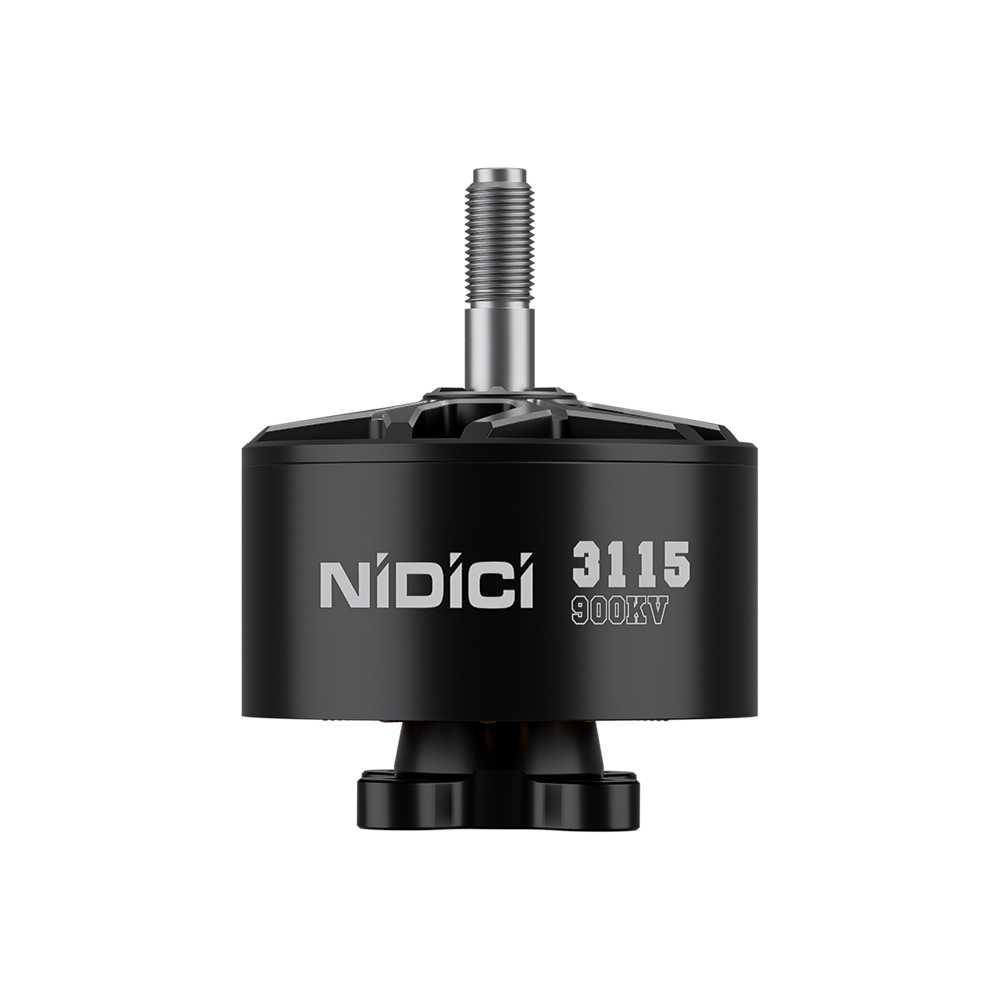

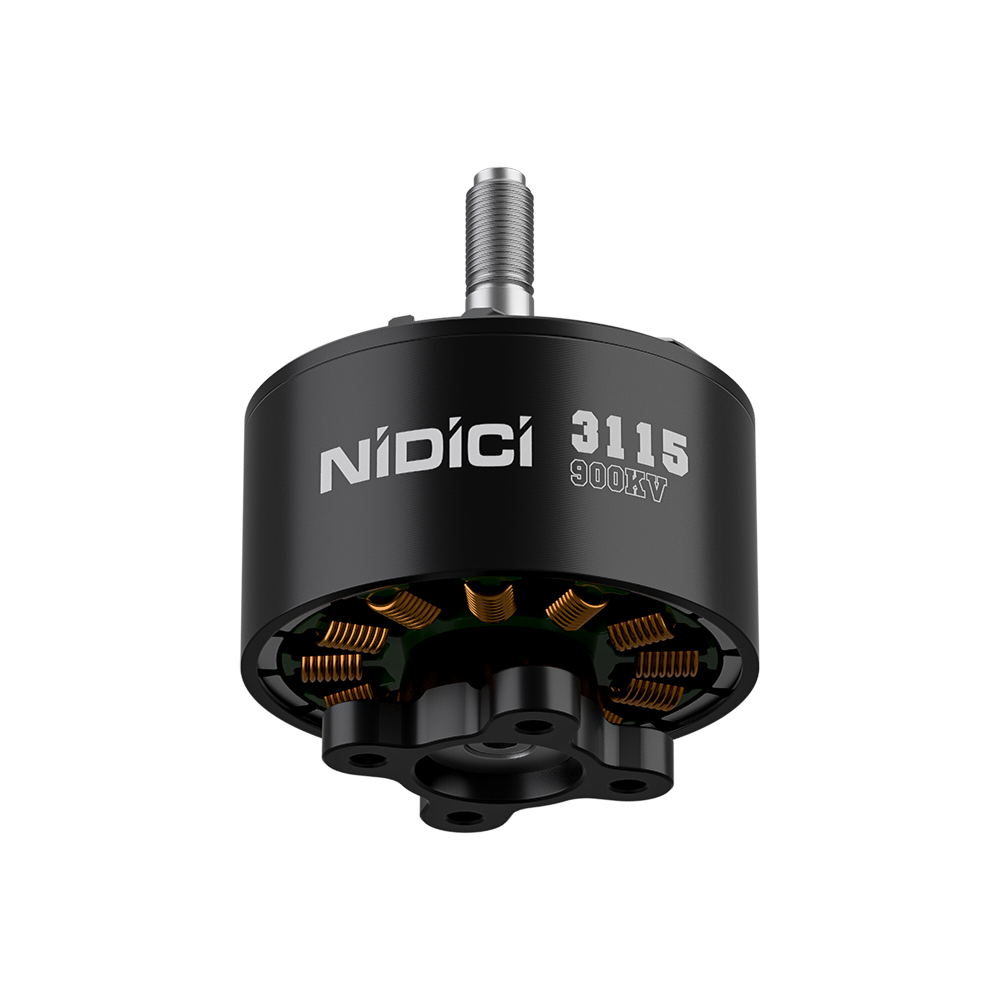

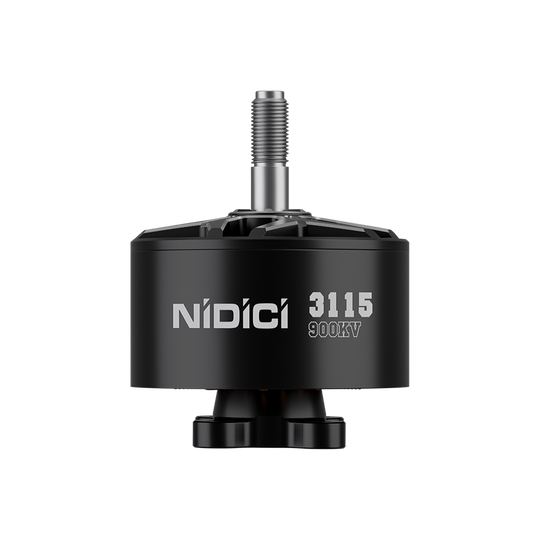

NIDICI 3115 FPV 900KV Motor

Unleash reliable performance on a budget with the NIDICI 3115 FPV Motor. Designed for pilots who demand power and durability without breaking the bank, this motor combines robust build quality with smooth, efficient operation for both freestyle and racing drone setups.

Features

• Premium N52H curved magnets delivering high torque

• Segmented bell design for enhanced cooling and durability

• Lightweight yet powerful at only 77g (including wire)

• Single strand copper winding for maximum efficiency

• Configuration: 12N14P for optimized smoothness and control

Specifications

• Weight: 77g (with wire)

• Dimensions: 36.85×46.8mm

• Shaft: 5mm diameter, 15.65mm protruding

• Input Voltage: 24V max

• Peak Current: 63.28A/78.86A (per KV option)

• Max Watt: 1,479.5W/1,830.3W

• Interphase Resistance: 51.24mΩ/24.15mΩ

• Mounting: 19×19mm M3 holes

• Lead: 260mm, 18AWG

• Bearing: φ11×5×5

• Rotor: Segmented bell

• Winding: Single strand copper

• Configuration: 12N14P

What’s Included

• 1× NIDICI 3115 Brushless Motor

• 4× M3×10 screws

• 1× M5 Flange Nut

Engineered for FPV enthusiasts and hobbyists, the NIDICI Affordable Series gives you trusted quality and serious performance at a price that makes sense. Perfect for both new builds and upgrades to your rig.
