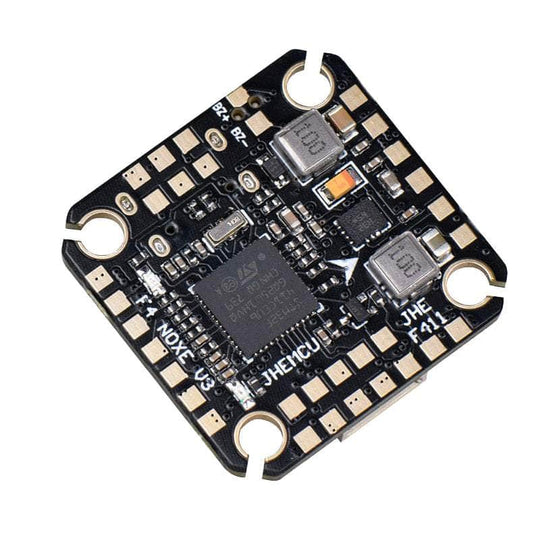

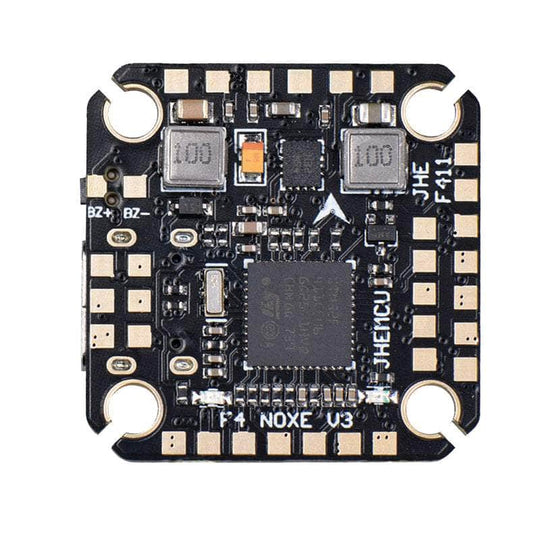

JHEMCU NOXE F4 V3 HD 2-6S 20x20 Flight Controller
JHEMCU NOXE F4 V3 HD 2-6S 20x20 Flight Controller
JHEMCU NOXE F4 V3 HD 2-6S 20x20 Flight Controller
JHEMCU NOXE F4 V3 HD 2-6S 20x20 Flight Controller
JHEMCU NOXE F4 V3 HD 2-6S 20x20 Flight Controller
JHEMCU NOXE F4 V3 HD 2-6S 20x20 Flight Controller

JHEMCU NOXE F4 V3 HD 2-6S 20x20 Flight Controller

$58.99
/
  • Low stock - 4 items left
  • Inventory on the way

JHEMCU had a new flight controller aimed at those DJI pilots. This board comes feature-packed and ready for your next build.  The 20x20 form factor makes it a perfect fit for nearly any size drone and 6s capability means that it will be able to keep up with your power needs.

Check out our other 20x20 flight controllers, as well as the rest of our JHEMCU selection!

Specifications

  • Input Voltage: 2-6S LiPo
  • MCU: STM32F411CEU6/100 MHz
  • Gyro: ICM-42688-P
  • OSD: Yes
  • UARTs: 2 Sets
  • ESC Connections: Yes
  • Firmware: Betaflight_4.3.1 JHEF 411.HEX
  • 5V-BEC: 5V/2.5A ± 0.1V
  • 10V-BEC: 10V/2A+0.1V
  • Current Sensor: Yes
  • Buzzer: Yes
  • Black Box: 16MB
  • DJI Compatible: Yes
  • Stack Size: 20x20
  • Dimensions: 27x27x5mm
  • Weight: 4.3g

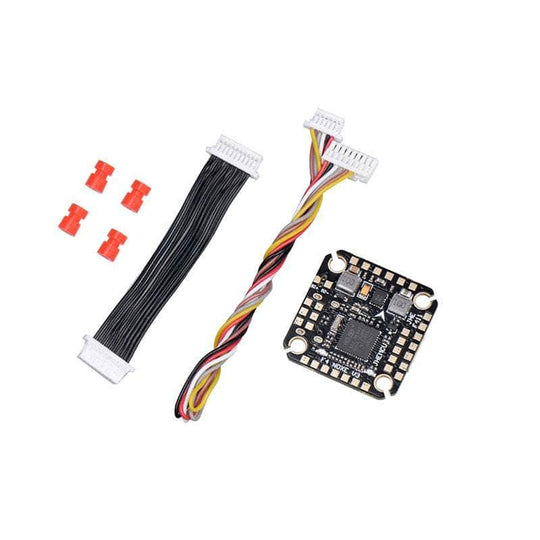

Includes

  • 1x JHEMCU NOXE F4 V3 HD 2-6S 20x20 Flight Controller
