RadioMaster Ranger Micro 2.4GHz ELRS Transmitter Module - Choose Version
Regular price$59.99
- Low stock - 15 items left
V1.6 Ranger Micro & Nano Modules: have resolved the external power issue and have begun shipping March.
The RadioMaster Ranger Micro 2.4GHz ELRS Transmitter Module features a JR module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system.
The starter combo also includes additional RPI receivers and one RP2 Receiver.
Check out all our RC Transmitters and our entire RadioMaster selection!
Features
- The JR connector supports TX16S MKII/TX12 MKII or JR standard 5pin socket radios.
- Micro ExpresssLRS 2.4GHz Module
- High-Efficiency Cooling System
- WiFi and Bluetooth Support
- Max F-1000Hz Packet Rate
- 1W Power Output
Specifications
- Minimum receiver refresh rate: 25Hz
- Weight: 50g (with Moxon antenna）
- Regulatory Domain: ISM2400
- Item: Ranger Micro Module
- RF chip: SX1281IMLTRT
- Bluetooth support: Yes
- Wifi Support: Yes
- Dimension: 136x49x33mm, 50g (with Moxon antenna) / 74x49x33mm, 40.5g (without antenna)
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- MCU: ESP32(main), ESP8285(aux,as esp backpack)
- Frequency Range: 2400 MHz to 2480 MHz

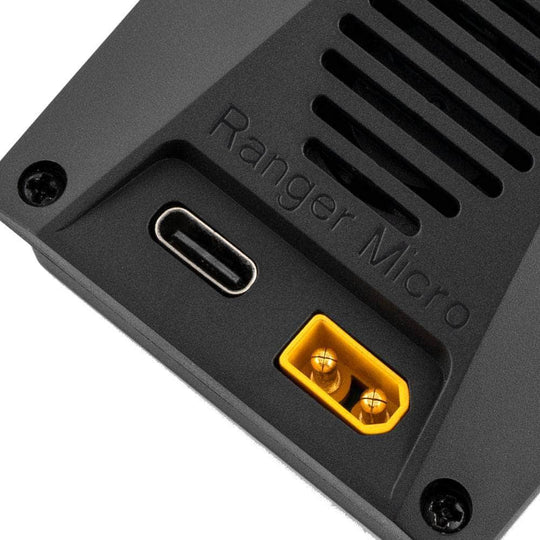

- XT30 Power supply voltage: DC 6V - 16V
- Maximum packet rate: 500Hz/F1000Hz
Includes Transmitter Only
- 1x Radiomaster Ranger Micro 2.4Ghz ELRS Module
- 1x JR Standard 5pin Socket Module Bay Adapter
- 1x Hexagon Socket Screwdriver

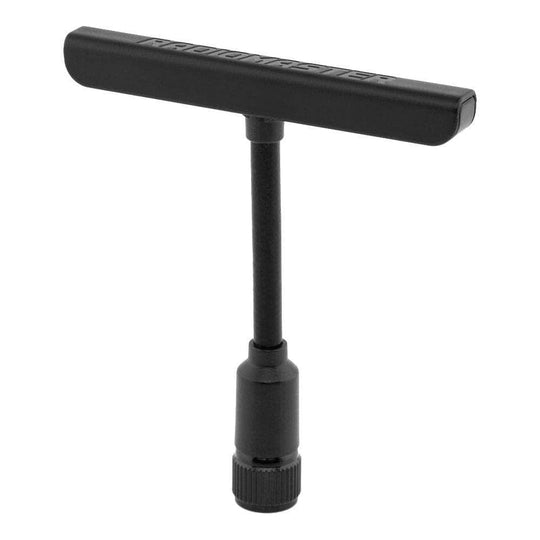

- 1x 2.4GHz T Antenna - RP-SMA
- 1x Futaba CRSF socket cable
- 3x M2x5 Screws

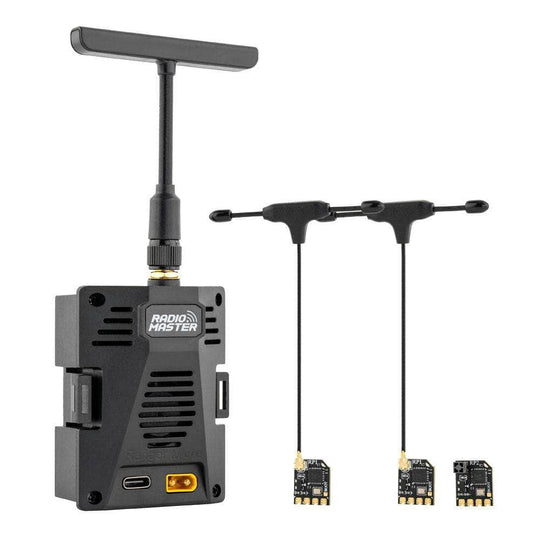

Includes Starter Combo
- 1x Radiomaster Ranger Micro 2.4Ghz ELRS Module
- 1x JR Standard 5pin Socket Module Bay Adapter
- 1x Hexagon Socket Screwdriver
- 1x 2.4GHz T Antenna - RP-SMA
- 1x Futaba CRSF socket cable
- 3x M2x5 Screws

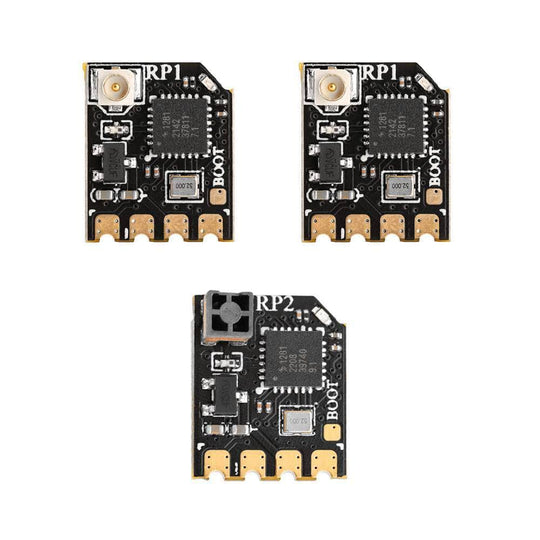

- 2x Radiomaster RP1 Receiver
- 1x Radiomaster RP2 Receiver
