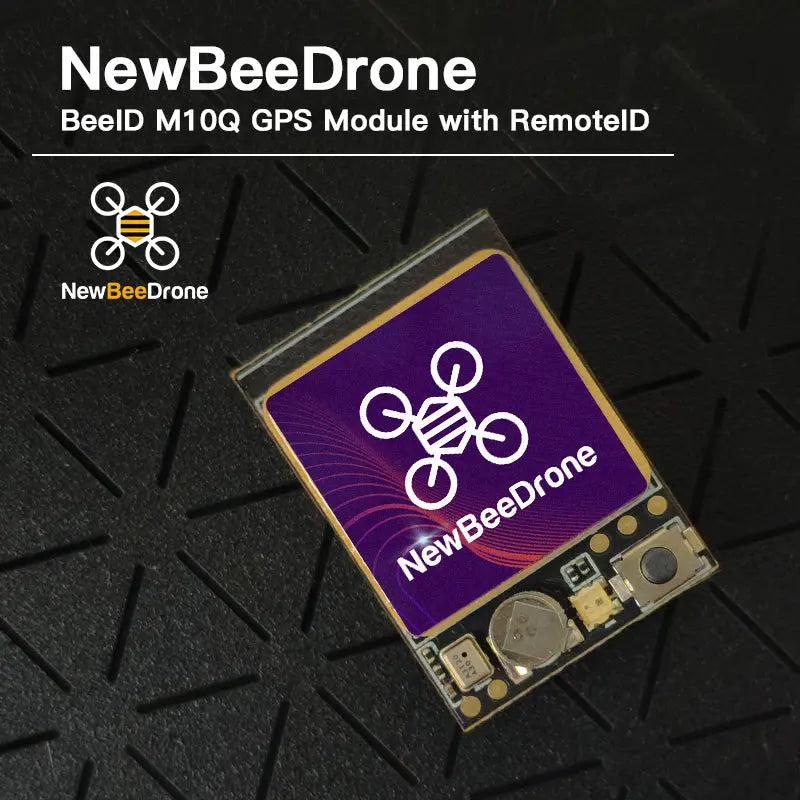

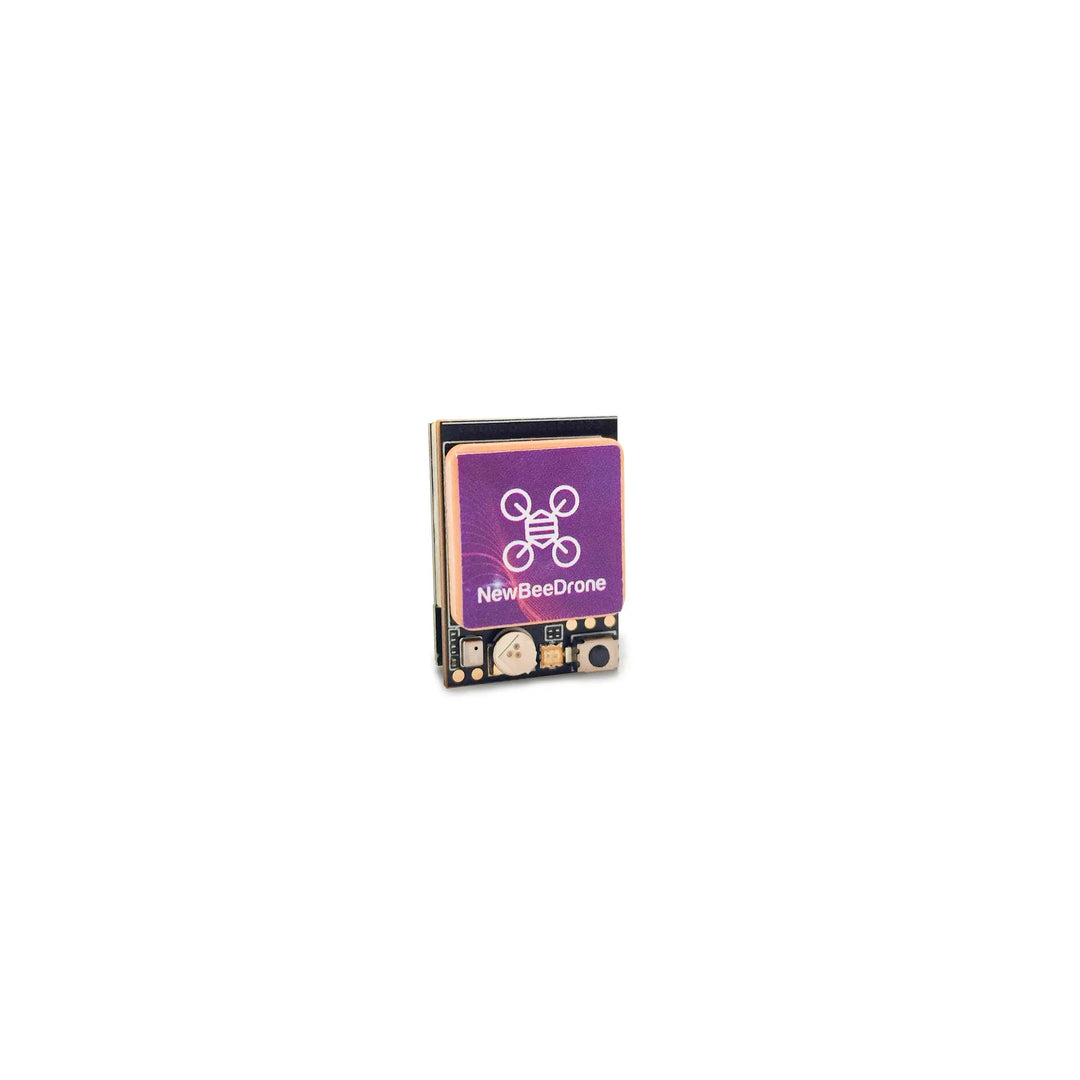

NewBeeDrone BeeID v1.1 M10Q GPS Module with RemoteID & Drone Tracker

NewBeeDrone BeeID v1.1 M10Q GPS Module with RemoteID & Drone Tracker

Remote ID. GPS Accuracy. Drone Recovery. All-in-One.

⚠️ IMPORTANT for iNAV Users
Please disable the AUTO-CONFIG setting in iNAV to ensure proper functionality of the BeeID module.



🔍 Built-In Drone Tracker for Easier Drone Recovery

The NewBeeDrone BeeID v1.1 M10Q GPS Module with RemoteID & Drone Tracker goes beyond compliance. Its integrated Drone Tracker helps you locate and recover your downed drone using apps like Drone Scanner — no extra hardware needed.

• Built-in Drone Tracker using BLE signal

• Supports smartphone-based search apps

• Designed for long-range and freestyle recovery situations

• Improves your chances of successful drone recovery

---

🌐 High-Performance GPS You Can Rely On

With the advanced u-blox M10Q chipset and a high-gain ceramic antenna, the BeeID module locks satellites fast and delivers stable, accurate positioning — perfect for GPS Rescue and autonomous navigation.

• Supports GPS / GLONASS / GALILEO

• 72-channel parallel tracking

• Fast lock times and accurate coordinates

• Works with Betaflight, iNAV, Ardupilot, PX4.

---

📡 Remote ID Built In — When You Need It

Flying drones over 250g in FAA-regulated airspace? The BeeID v1.1 M10Q includes fully compliant Remote ID broadcast functionality. It activates when required and stays in the background when not.

✅ Remote ID is included for compliance, without interfering with GPS or Drone Tracker functions.

---

✅ Key Features

• High-precision u-blox M10Q GPS

• Built-in Drone Tracker for signal-based drone recovery

• Remote ID compliant for FAA requirements

• Lightweight and compact (approx. 5.2g)

• Ceramic GPS antenna for strong reception

• WiFi setup via phone or PC

• Standard UART interface

• Built-in barometer for Remote ID altitude broadcasting

---

Specifications:

• Dimensions: 22mm x 15.6mm x 8mm
• GPS Module: M10Q GPS for fast and precise location tracking
• Protocol:GPS L1. GLONASS L1. GALILEO E1.
• Weight:5.2g
• Antenna: Ceramic GPS Antenna
• Receiving Ch: 72ch
• Bitrate: 115200bps
• Speed Accuracy: 0.05m/s
• Dynamic Characteristics: 50,000 meters
• Operating Tempereture: -40°C - +85°C
• RemoteID Compliance: Meets FAA requirements for drones over 250g; registration instructions available here
• FAA UAS Declaration of Compliance here
• Connectivity: WiFi for configuration; BLE for RemoteID broadcasting
• Power: 5V input and ground connection
• Compatibility: Standard GPS UART output; works with Betaflight, iNAV, Ardupilot, and PX4
• Built-in Barometer: Provides altitude data for regions with altitude reporting requirements（The barometer does not participate in the flight, it is used solely for broadcast reports only.）
• Firmware - Please don't update the firmware if you get the V1.1 version.
• BeeID 3D File

---

🚀 Why Choose BeeID v1.1 M10Q?

Because modern flying demands more than just compliance — it demands reliability. With fast GPS lock, a built-in Drone Tracker, and fully integrated Remote ID, the BeeID v1.1 M10Q helps you navigate confidently and recover faster when things go wrong.

Whether you're flying freestyle, long-range, or commercial missions — this module has your back.

🙋 Frequently Asked Questions

Q: Is this module just for Remote ID?
A: No. It’s a full-featured GPS with a built-in Drone Tracker, ideal for both navigation and recovery.

Q: What does the Drone Tracker do?
A: It emits a BLE signal that can be detected by your phone using apps like Drone Scanner — enabling real-time drone recovery if it goes down.

Q: Can I fly without Remote ID enabled?
A: Yes. The Remote ID function operates passively and only when needed. It won’t affect GPS or tracking performance.

Q: Does this work with GPS Rescue in Betaflight?
A: Absolutely. It’s fully compatible with Betaflight, iNAV, Ardupilot, PX4, and other major flight platforms.



📒 How to use:

BeeID M10Q – GPS + Bluetooth  Setup Instructions

Step 1: Verify Flight Controller Compatibility

Before installation, ensure that your flight controller (FC) and its firmware support the UBLOX GPS protocol.

• Some older versions of Betaflight firmware may not be compatible with UBLOX GPS.

• It is recommended to update your FC to the latest firmware to ensure proper functionality.

Step 2: Wiring the BeeID M10Q GPS Module

Proper wiring is essential for accurate data transmission between the BeeID module and your flight controller. Follow these steps:

• Connect the BeeID TX (Transmit) pin to the FC RX (Receive) pin on the same UART port.

• Connect the BeeID RX (Receive) pin to the FC TX (Transmit) pin on the same UART port.

• Ensure 5V power and ground are correctly connected to provide stable operation.

Step 3: Configuring the UART Port

After wiring, configure the corresponding UART port in your flight controller firmware:

• Set the baud rate to 115200bps to match the module’s default speed.

• Enable GPS mode on the selected UART port.

• Save and reboot your flight controller to apply the changes.

Step 4: Confirm GPS Functionality

• Verify that the module successfully acquires GPS satellites.

• In Betaflight, iNAV, or Ardupilot, check the GPS status page for satellite lock and position updates.

• Ensure that RemoteID broadcasting is active and functional via BLE. You can use the Drone Scanner App to check the broadcasting information.

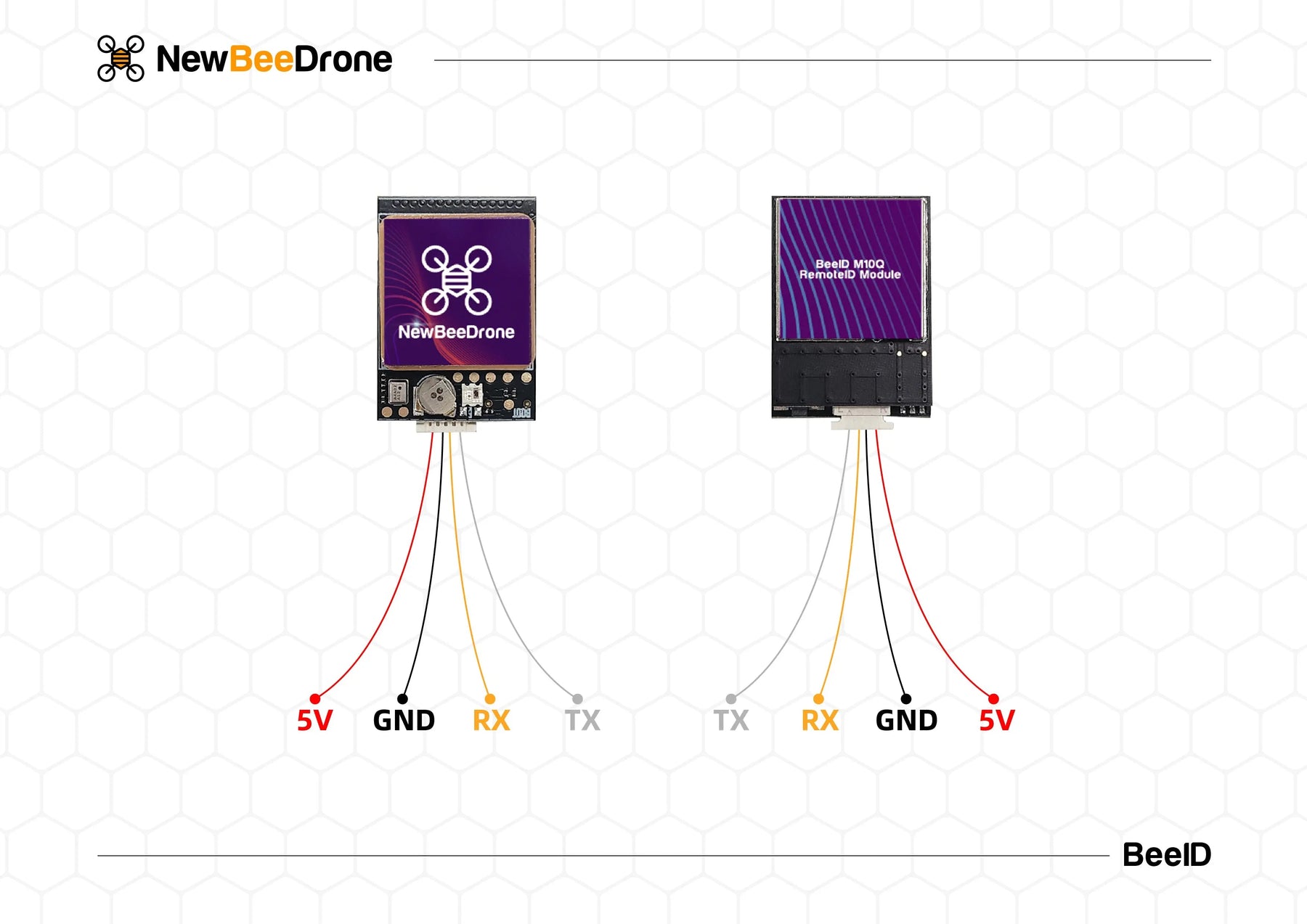

Wire Diagram:
