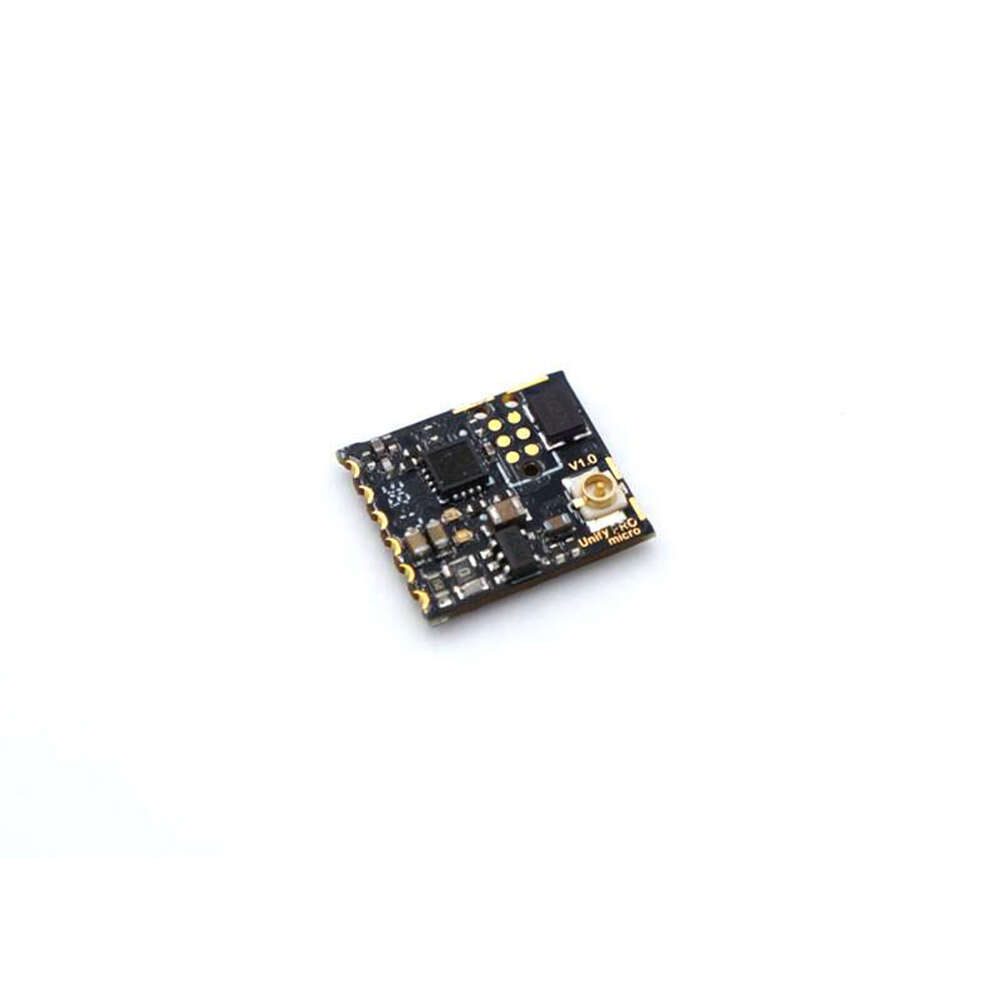

TBS UNIFY PRO NANO 5G8

TBS UNIFY PRO NANO 5G8

Regular price$19.95
/

  • In stock, ready to ship
  • Inventory on the way

SIZE MATTERS!


As builds become smaller and the innovation surrounding brushed and brushless micro quads accelerates, the need for a high-quality VTx increases. TBS has built the smallest VTx possible, focusing purely on size! Sporting the usual Unify Pro pedigree, a newly-revised u.FL connector and the industry-standard Smart Audio support. You will be blown away with the performance in terms of range, signal clarity and signal spacing.


SPECIFICATIONS



  • Input Voltage: 4.5V - 5V ONLY

  • Power levels: 25mW / 50mW

  • Interface: SmartAudio and capacitive button (or solder external tactile button separately - included!)

  • Weight: 1.4g (incl. antenna)

  • Size: 13.2mm x 14.6mm

  • Antenna connector: u.FL (upgraded)

  • Antenna length: 45.6mm (end to end)

  • TBS Tech: Smart Audio, Clean Switch


INCLUDES



  • 1x Unify Pro nano 5G8 VTX

  • 1x button switch

  • 1x TBS UNIFY PRO 5G8 Linear Antenna

  • 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
