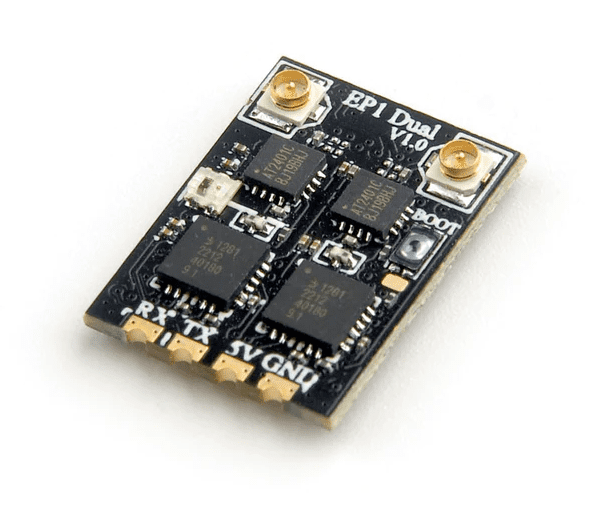

HAPPYMODEL 2.4G EXPRESSLRS EP1 DUAL RX TRUE DIVERSITY RECEIVER MODULE

Introduce the World first true diversity 2.4 GHz ExpressLRS Rx with RF amps!

Check out our ExpressLRS Collection, all our Receivers and the rest of our Happymodel Products!

SPECIFICATIONS:

• Item: Happymodel EP1 Dual receiver true diversity 2.4Ghz ExpressLRS RX

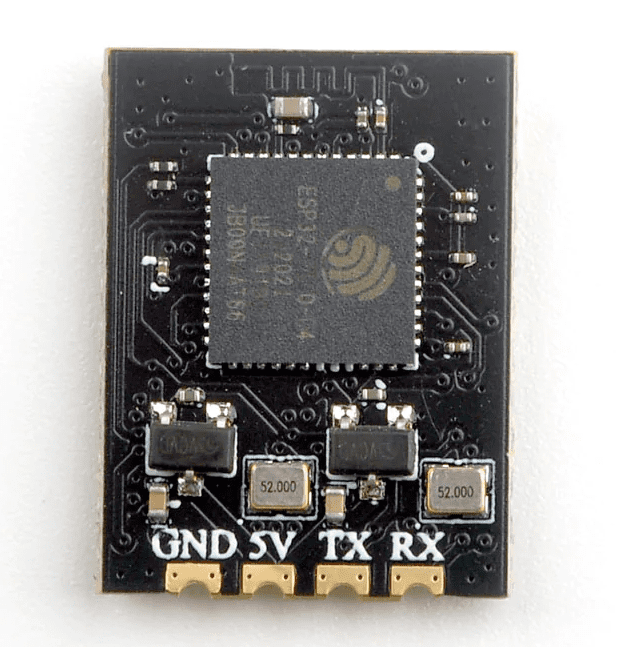

  ESP32 PICO D4, dual SX1280(SX1281)


• Antenna connector: IPEX MHF 1/U.FL


• RF Frequency: 2.4GHz (2400~2480MHz)


• Telemetry power: >19dbm


• Receiver protocol: CRSF


• Input voltage: +5V DC @ “+” pad


• PCB size: 19mm x 14mm


• Weight: 1gram exclude antenna

FIRMWARE:

• ExpressLRS v3.0.0 rc1 or latest version


• Target: Unified_ESP32_2400_RX, Append configuration -Generic ESP32 2.4Ghz Diversity RX


• (EP1 Dual target will be available soon)


• Firmware update via UART or WIFI

PACKAGE INCLUDES:

• 1 x Happymodel 2.4G ExpressLRS EP1 Dual RX True Diversity Receiver Module
